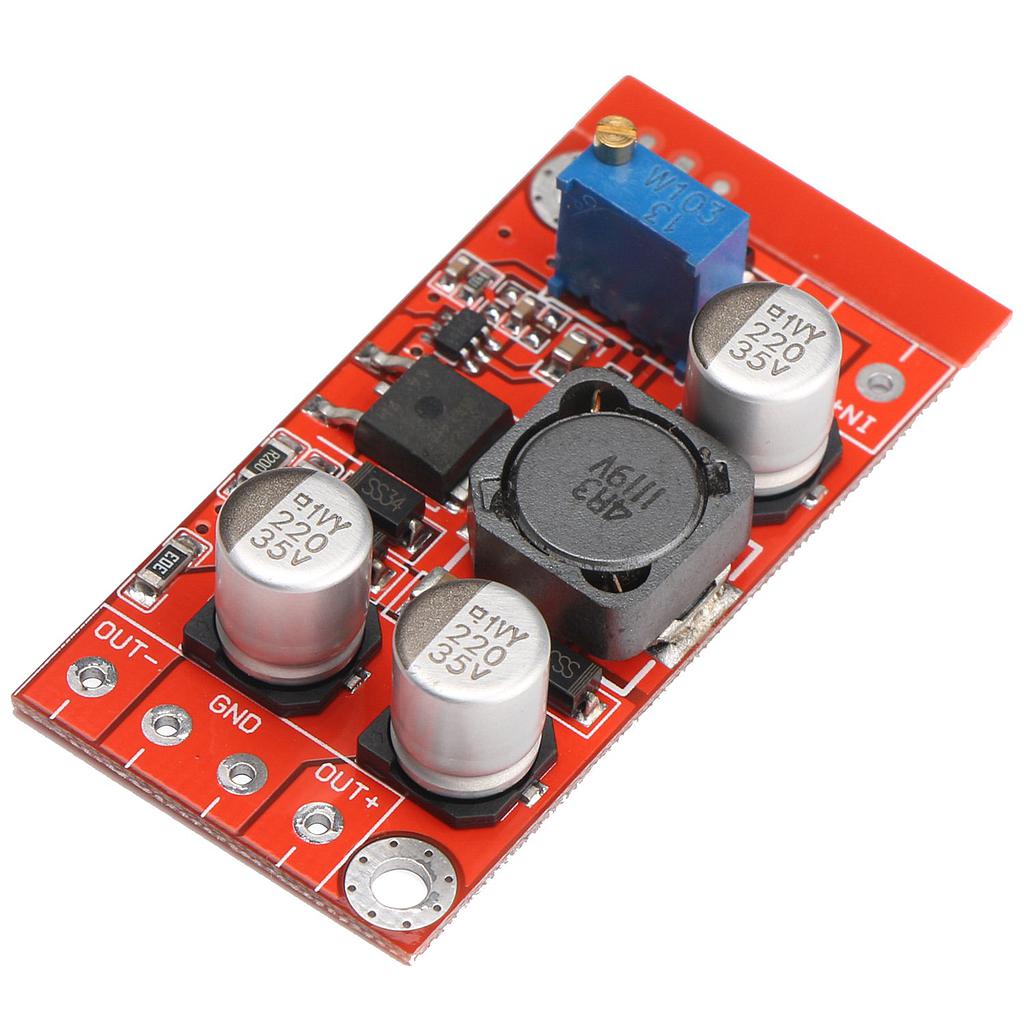

DC-DC Converter 3-6V to 5-32V Step Up Module QS-0324CA-5W

https://www.satistronics.com/web/image/product.template/6728/image_1920?unique=99581fd
(0 review)

3.78 3.7800000000000002 USD 3.78

¥ 27.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941733
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model: QS-0324CA-5W

    Features:

    • It is a non-isolated step up module, positive and negative dual output

    • Input Voltage: DC 3-6v; output Voltage: DC 5-32v(continuously adjustable)

    • Input current: 3A (max); output current: 0 3A (max)

    • High conversion efficiency, up to 70-85 percent

    • Output power: natural cooling 5W

    Parameters:

    • Module Properties: non-isolated step-up module (positive and negative Dual output)

    • Input Voltage: DC 3-6V

    • Output Voltage: DC 5-32V

    • Output Current: 0.3A (MAX)

    • Input Current: 3A (MAX)

    • Output Power: Natural cooling 5W

    • Conversion Efficiency: 70-85%

    • Output Ripple: 20M bandwidth of 2%

    • Operating Temperature: Industrial (-40°c to +85°c) (If ambient temperature exceeds 40°c, please lower power use, or to enhance heat dissipation)

    • Full Load Temperature Rise: 35°c

    • No-load Current: Typical 8mA (5V to +/- 24V)

    • Load Regulation: positive +/- 1%, negative +/- 5%

    • Voltage Regulation: +/-1%

    • Short Circuit Protection: None (Please install fuses or circuit protection at the input port.)

    • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

    • Installation: screw (diameter 3 mm), 2 fixing holes
