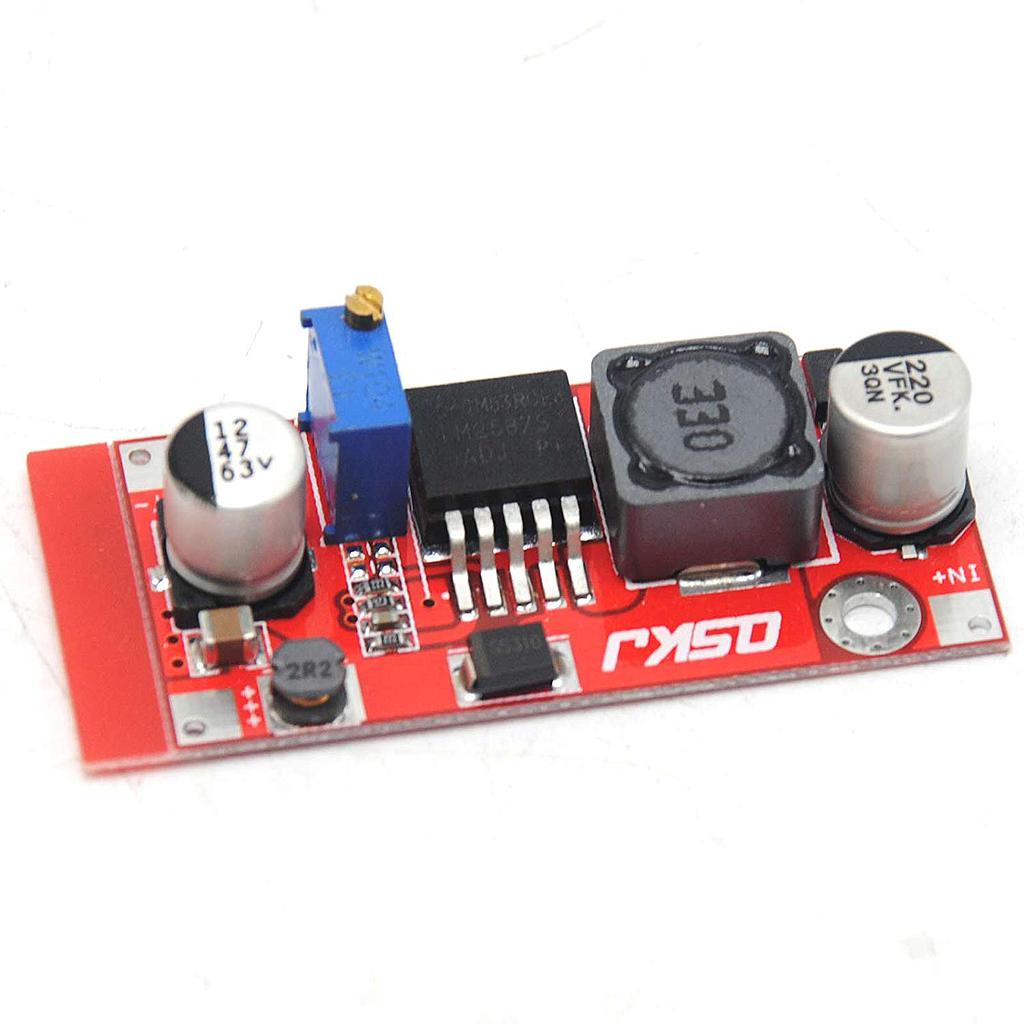

DC-DC Boost Module 4-34V to 4-35V LM2587 Current 5A Switching QS-0324CBDM-15W

https://www.satisled.com/web/image/product.template/6718/image_1920?unique=0a4262b
(0 review)

2.81 2.81 USD 2.81

¥ 20.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941723
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-0324CBDM-15W

    Parameters:

    • Module Properties:Non-isolated step-up module (Boost)

    • Input voltage:4-34V

    • Output Voltage:
                           (1) continuously adjustable(4-35V) ;
                           (2) Fixed output (4-35VBetween the arbitrary choice)AndPlease tell treasurer purchase.

    • Output current:2.5A (MAX)

    • Input Current:3A (peak 5A) (5A current chip)

    • Power output:Natural cooling15W, plusHeatsink25W (MAX)Actual power

    • Maximum output power = input voltage * 5A * conversion efficiency

    • Output power limit (Conditions:Good heat dissipation):

    • Input 5V Output 12V 1.2A

    • Input 5V Output 24V 0.6A

    • Input 5V Output 48V 0.35A

    • Input 7.4V Output 12V 2A

    • Input 7.4V Output 19V 1.2A

    • Input 7.4V Output 24V 0.9A

    • Input 7.4V Output 48V 0.55A

    • Input 12V Output 19V 2A

    • Input 12V Output 24V 1.5A

    • Input 12V Output 48V 0.8A

    • Input 24V Output 48V 1.6A

    • Conversion efficiency:

    • Business is busy, no time to deal with the test image, a simple list of the current efficiency of the commonly measured voltage reference (hereinafter reference only)

    • Input 5V Output 12V 0.5A Efficiency 84%

    • 12V 0.5A input 7.4V output efficiency 90%

    • Input 7.4V output the 12V 1A efficiency 88%

    • Input 12V Output 16V 1A efficiency of 92%

    • Input 12V Output 16V 2A efficiency 90%

    • Input 12V Output 19V 1A efficiency of 91%

    • Input 12V Output 19V 1.5A Efficiency 92%

    • Input 12V Output 24V 0.5A Efficiency 89%

    • Input 12V Output 24V 1A efficiency of 88%

    • Output ripple:20M bandwidth (for reference only)

    • 48V 0.2A ripple 300 mV input 24V output

    • Operating temperature:Industrial grade (-40 to +85 ) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)

    • Full load temperature rise:45

    • No-load current:The typical 15mA (5V transferred 12V)

    • Load regulation: 0.5%

    • Voltage adjustment rate:0.5%

    • Dynamic response speed:5% 200uS

    • Short circuit protection:(Please enter the installation of fuse protection circuit)

    • Input reverse polarity protection:None, in line with ourReverse polarity protection boardOr in the input series diode.

    • Installation:Screws (diameter 3 mm), and two fixing holes

    • Connection mode:Welding, plus pins can be soldered directly on the PCB

    • Optional pin, radiator shell.
