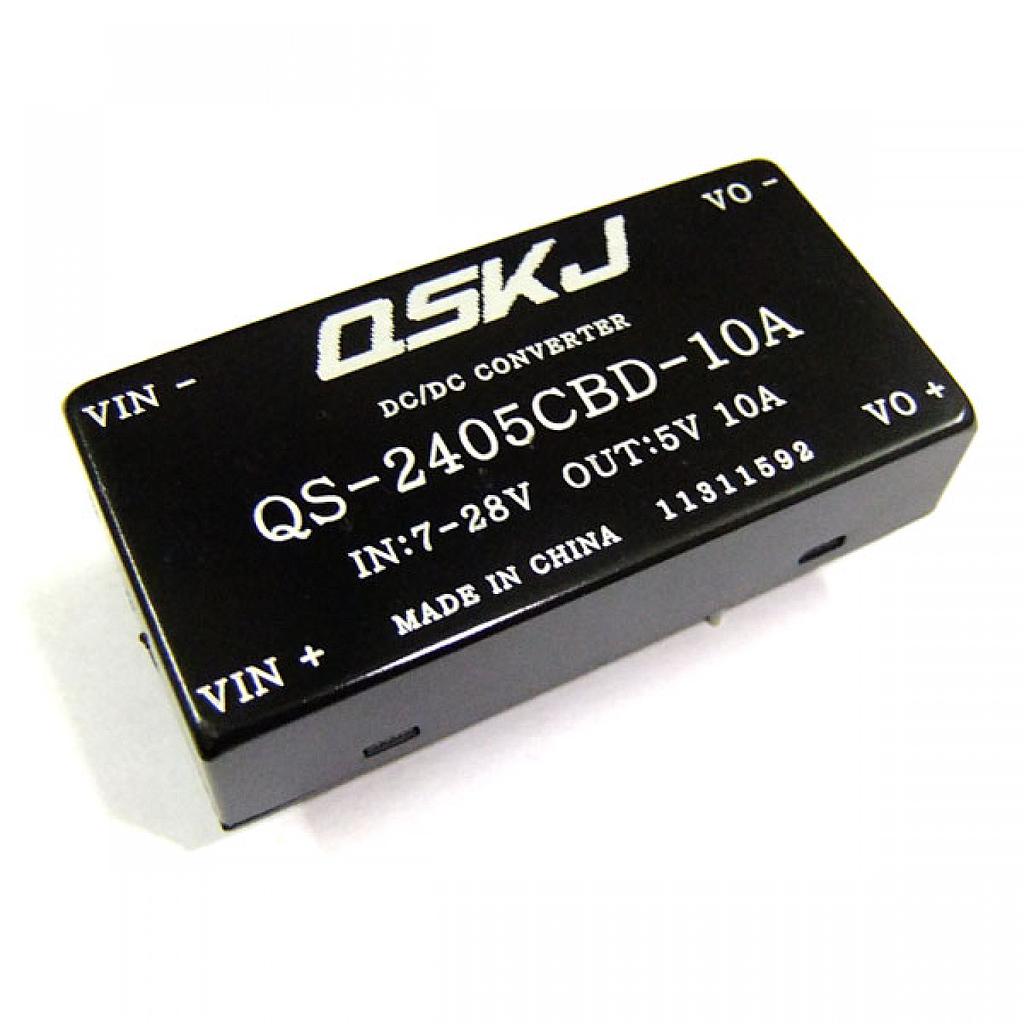

DC-DC Converter 7~28V to 5V 10A Step Down Power Module QS-2405CBD-10A

https://www.satistronics.com/web/image/product.template/7050/image_1920?unique=99581fd
(0 review)

13.72 13.72 USD 13.72

¥ 98.00

Not Available For Sale


    This combination does not exist.


    SKU :
    2244777
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    It is a DC 5V Power Supply Module/Driver Module/Adapter, Input voltage: DC 7~28V, Output voltage: 5V, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, Monitoring System, LED lights, Fan, intercom and monitor system, etc.

    Feature:

    • Module Properties: Non-isolated step-down module (BUCK)

    • Rectification: synchronous rectification

    • Input voltage: DC 7~28V

    • Output voltage: 5V

    • Minimum pressure: 2V

    • Output current:

    • input 12V, Output 5V 8A, 10A with heat sink

    • input 24V, Output 5V 6A, 8A with the heat sink, 10A With heat sink and there is significant air convection

    • Output Power: 50W (MAX) (example: Input 12V Output 5V 10A with heat sink)

    • Conversion Efficiency: Up to 95%

    • Soft-start time: about 500mS

    • Output ripple: 50mV (MAX) 20M-bandwidth

    • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

    • Full load temperature rise: 40°c

    • Load Regulation: ± 1%

    • Voltage regulation: ± 2%

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: sustainable, self-recovery.

    • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

    Some Applications

    • 12V 24V Car LED power supply: Input 12V or 24V, output 5V for LED

    • High-power low-voltage chip power supply.

    • Power Supply for electric system: Input 7-28V, output could be 5V 10A

    Package Includes:

    1 x DC/DC Buck Converter ( Power Supply Module/Voltage Regulator/Adapter)
