DC-DC Converter 5-32V to 12-35V CC CV Step Up Power Supply Module QS-1235CCBA-100W

Price:

3.30


9W High Power Imitation Lumen RGB Led Four Feet
9W High Power Imitation Lumen RGB Led Four Feet
1.09
1.09
4.8/6.3MM Plug Spring Insulated Terminal Cold Terminal Crimp Terminal 10CM/20CM
4.8/6.3MM Plug Spring Insulated Terminal Cold Terminal Crimp Terminal 10CM/20CM
0.50
0.50

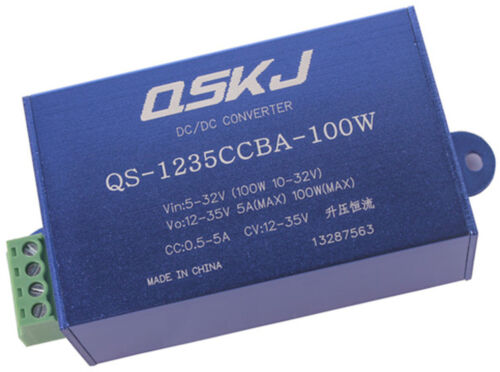

DC-DC Converter 5-32V to 12-35V CC CV Step Up Power Supply Module QS-1235CCBA-100W

https://www.satistronics.com/web/image/product.template/6727/image_1920?unique=f2de1fd
(0 review)

11.00 11.0 USD 11.00

¥ 80.00

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-1235CCBA-100W

    Features:

    • To constant current constant voltage (for driving high-power LED, and charge the battery)

    • Efficiency as high as 94%, fever little energy loss

    • Low ripple design, the load disturbance, 12V switch 12V 2A typical ripple 21mV

    • Breakdown after effectively prevent the direct input and output, security design (for safety equipment work)

    • And with input reverse voltage protection, output short circuit and over current protection

    • Casting aluminum enclosure design, seismic, water, heat, harsh environment adaptability 8. Pluggable terminal design, easy disassembly, more convenient connections

    • Where the power enough to work in parallel

    Parameters:

    • Module Properties: non-isolated constant current and voltage can be automatically boost

    • Input Voltage :5-32V

    • output voltage: (1) adjustable (12-35V)

    •                         (2) fixed output (12 arbitrary choice between-35V

    • output constant current range :0.5-5A (100W MAX) (continuously adjustable)

    • Output Power: 100W maximum cooling power (input voltage greater than 10V, the input 8V output 60W MAX)

    • conversion efficiency: typical 92%

    • Operating temperature: Industrial grade (-40°c to +85°c) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation) shell surface temperature can not exceed 90 degrees

    • full load temperature rise : 40°c

    • load current: Typical

    • Load regulation: ± 2%

    • voltage regulation rate: ± 0.5%

    • dynamic response speed: 5% 200uS

    • short circuit protection: No output short circuit strict

    • undervoltage Protection: None

    • Input reverse polarity protection: Yes.

    • Installation: screw (diameter 3 mm), 2 mounting holes, 2 fixed hole spacing of 82 mm

    • Connection mode: you can plug terminals, pressure lines, does not require welding

    • Case: All aluminum, casting process, can work under adverse conditions

    • Driving LED simple adjustment of voltage and current methods (such as 10 series LED current 1. 7A 50W)

    • Module input power output is not connected LED, adjust the CV output voltage to approximately 34V;

    • CC multi-turn adjustment counterclockwise until you hear potentiometer which sent da da sound (potentiometer has been adjusted to the end);

    • Connecting LED, and the LED anode and cathode in series between the module outputs a current meter (ammeter internal resistance as small as possible, ammeter connecting wire as thick, short, so as not to affect the debugging results);

    • Power, this time should not be light or micro-LED light, observe the ammeter shows the current, slowly clockwise until the ammeter shows about regulating CC 1. 7A.

    • Remove the meter, direct electrical test machine.

    Driving LED simple adjustment of voltage and current methods (such as 10 series LED current 1. 7A 50W)

    • Module input power output is not connected LED, adjust the CV output voltage to approximately 34V;

    • CC multi-turn adjustment counterclockwise until you hear potentiometer which sent da da sound (potentiometer has been adjusted to the end);

    • Connecting LED, and the LED anode and cathode in series between the module outputs a current meter (ammeter internal resistance as small as possible, ammeter connecting wire as thick, short, so as not to affect the debugging results);

    • Power, this time should not be light or micro-LED light, observe the ammeter shows the current, slowly clockwise until the ammeter shows about regulating CC 1. 7A.

    • Remove the meter, direct electrical test machine.

    Applications:

    • Battery voltage regulator, 12V battery to it (10-14V) output voltage regulation in 12V, 24V battery output voltage in 12V.

    • Solar charge regulator, solar cells can now stabilize fluctuations in voltage and can charge the battery to avoid battery overshoot.

    • Constant current institutions can charge the battery, driving high power LED

    • The system before the class, ultra-high efficiency design, environmental protection, heat a small capacity loss.

    • 1-4 high-power LED strings can be used to drive the battery charging, battery voltage, car voltage regulators, power equipment, etc.
