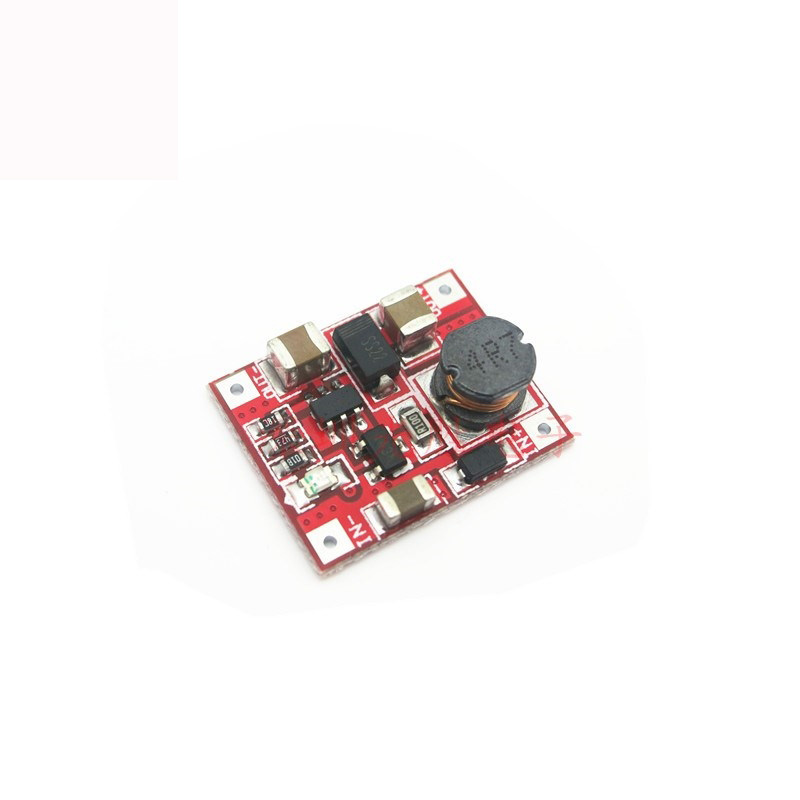

DC-DC Converter 3V to 5V 1A Step Up Power Supply Module QS-0305-3W New Version

https://www.satisled.com/web/image/product.template/6730/image_1920?unique=ea656d2
(0 review)

1.11 1.11 USD 1.11

¥ 8.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941749
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model: QS-0305-3W

    Parameters:

    • Module Properties:  non-isolated step-up module (BOOST)

    • Input voltage:  1-5V

    • Output voltage:  5.1~5.2V

    • Output Current:  Rated 1A~1.5A (Single lithium battery input)

    • Conversion efficiency:  up to 96% ( input voltage, the higher the efficiency )

    • Switching Frequency:  500KHz

    • Output ripple:  30mV (Max)  20M Bandwidth ( Input 4V, Output 5.1V 1A)

    • Voltage indication:  LED lights with a load (input voltage is lower than 2.7V LED indicator off )

    • Operating temperature: Industrial grade (-40 Celsius to +85  Celsius )

    • Full load temperature rise: 30  Celsius

    • Quiescent Current: 130uA

    • Load regulation:  ± 1%

    • Voltage regulation:  ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: None

    • Input Reverse Polarity Protection: None

    • Wiring: Welding
