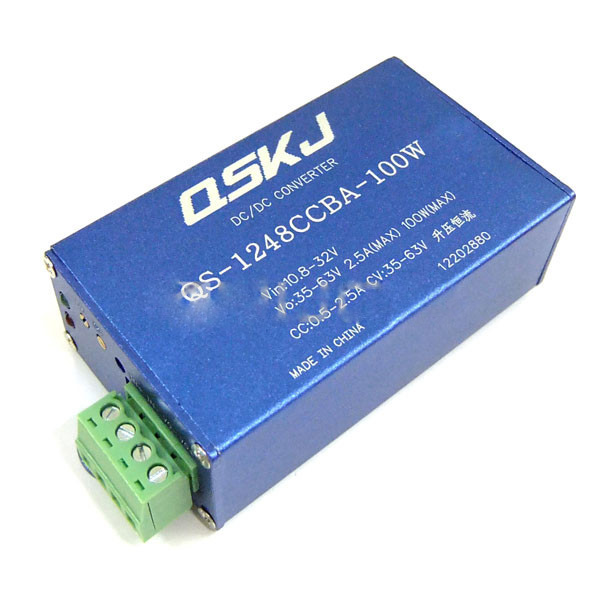

DC-DC Converter 10.8-35V to 35-63V 100W CC Step Up Module QS-1248CCBA-100W

https://www.satistronics.com/web/image/product.template/6726/image_1920?unique=99581fd
(0 review)

11.76 11.76 USD 11.76

¥ 84.00

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-1248CCBA-100W

    Features:

    • Step-up structure, Wide input voltage range (input less than output)

    • Constant current and voltage, Used to drive high power LEDs, and to charge the battery

    • Efficiency as high as 92%

    • Can use 12V/24V battery to charge 36V/48V Battery.

    • Even the Step-up structure breakdown, Will not damage equipment, security design

    • With input reverse and undervoltage protection

    • Aluminum shell potting design, shockproof, Waterproof, Heat-Sink, harsh environments adaptable

    • Pluggable terminal design, easy assembly and disassembly, wiring more convenient

    • Can be Parallel work in power is not enough occasions

    Parameters:

    • Module Properties: non-isolated constant current and voltage can be automatically boost buck

    • Input Voltage: DC 10.8~35V

    • Output voltage: DC 35~63V (adjustable)

    • Output constant current range: 0.5~2.5A (100W MAX) (continuously adjustable)

    • Output Power: Input 12V, MAX 100W output (input voltage greater than 24V, MAX ouput can reach 150W )

    • Conversion Efficiency: 92%

    • Output ripple: 20M bandwidth (for reference)

    • Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation), case surface temperature should not exceed 90°c.)

    • Full load temperature rise: 50°c

    • No-load current: Typical 20mA

    • Load regulation: ± 2%

    • Voltage regulation: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: No, please pay attention to the short-circuit

    • Undervoltage protection: about 10.5~11V

    • Input Reverse Polarity Protection: Yes.

    • Installation: screw (diameter 3 mm), 2 mounting holes, 2 holes spaced 82mm

    • Shell: full aluminum

    Applications:

    • Constant Current output, High Power LED driver

    • Adjustable Output Car Power

    • Boost Charger

    • Power for your electronic equipment
