DC-DC Boost Module 3-34V to 4-35V Adjustable Power Supply Module QS-0324CBD-15W

Price:

3.22


9W High Power Imitation Lumen RGB Led Four Feet
9W High Power Imitation Lumen RGB Led Four Feet
1.11
1.11
100W Recharge Portable LED Floodlight Lithium 18650 Battery 2400LM Outdoor Working Light
100W Recharge Portable LED Floodlight Lithium 18650 Battery 2400LM Outdoor Working Light
76.07
76.07

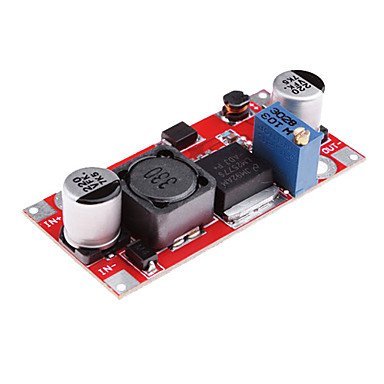

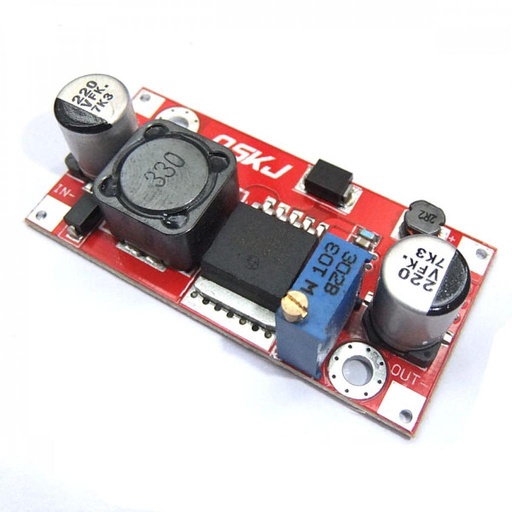

DC-DC Boost Module 3-34V to 4-35V Adjustable Power Supply Module QS-0324CBD-15W

https://www.satistronics.com/web/image/product.template/6720/image_1920?unique=99581fd
(0 review)

1.96 1.96 USD 1.96

¥ 14.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941725
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QQS-0324CBD-15W

    Parameters:

    • Module Properties: non-isolated module (Boost)

    • Module modle:LM2577

    • Cutting Size:49mm x 23mm

    • Input voltage :DC 3-34V

    • Output voltage: DC 4-60V (continuously adjustable)

    • Output Current: 2.5A (Max.)

    • Input Current: 3A (Max.)

    • Output power: 15W(natural cooling),  Max. 25W (enhance heat dissipation)

    • Maximum output power: Input voltage * 3A * conversion efficiency

    • Operating temperature: Industrial grade -40°c to +85°c (ambient temperature exceeds 40 °c, please reduce power or plus fan)

    • Full load temperature rise: 45 °c

    • No-load current: typical 15mA (5V turn to 12V)

    • Load Regulation: ± 0.5%

    • Voltage Regulation: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short-circuit protection: None (please enter retrofitting fuse or protective circuit)

    • Input reverse polarity protection:  None (If need please install diode at the input port )

    • Installation: Screw (3 mm in diameter), 2 fixing holes

    • Wiring: Welding, plus pin then soldered to the PCB directly

    Conversion efficiency Reference:

    • 3.7V input, 5V/1A output, efficiency 81%

    • 5V input, 12V/0.5A output, efficiency 84%

    • 7.4V input, 12V/0.5A output,efficiency 90%

    • 7.4V input, 12V/1A output, efficiency 88%

    • 12V input,  16V/1A output, efficiency 92%

    • 12V input,  16V/2A output, efficiency 90%

    • 12V input,  9V/1A output,efficiency 91%

    • 12V input, 19V/1.5A output, efficiency 92%

    • 12V input,  24V/0.5A output, efficiency 89%

    • 12V input,  24V/1A output, efficiency 88%

    Applications:

    • DIY a mobile power supply, for cell phone, MP3, MP4, PSP and etc.

    • Boost charger, can use two pcs AA batteries or lithium batteries to charge the device(4-60V)

    • Front of a system power supply:when the input voltage is less than 4-35V.

    Working Efficiency Test:

    7


    6
