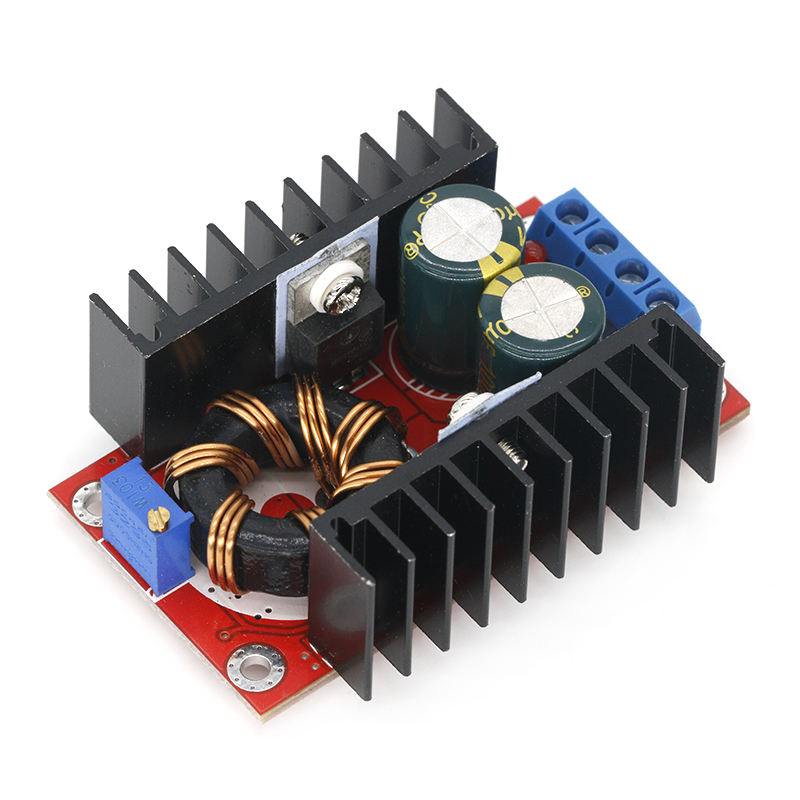

DC-DC Converter 10-32V to 12-35V Step Up Power Supply Module QS-1224CBD-150W

https://www.satistronics.com/web/image/product.template/6708/image_1920?unique=8c5d80f
(0 review)

1.61 1.61 USD 1.61

¥ 11.50

Not Available For Sale


  • Version

This combination does not exist.


SKU :
23111348
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Brand: QSKJ

Model:  QS-1224CBD-150W

Parameters:

  • Input voltage: DC 10V-32V.
  • Output voltage: DC12V-35V(adjustable).
  • Output current: 10A (MAX).
  • Input current :16A (MAX) (more than 10A please strengthen heatsink).
  • Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
  • Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
  • Output ripple: 2% (MAX).
  • Full-Load temperature: 45 degrees.
  • No-load current: 25mA typical.
  • Voltage regulation: ± 0.5%.
  • Load regulation: ± 0.5%.
  • Dynamic response speed: 200uS 5%.
  • Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
  • Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
  • Working temperature: industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
