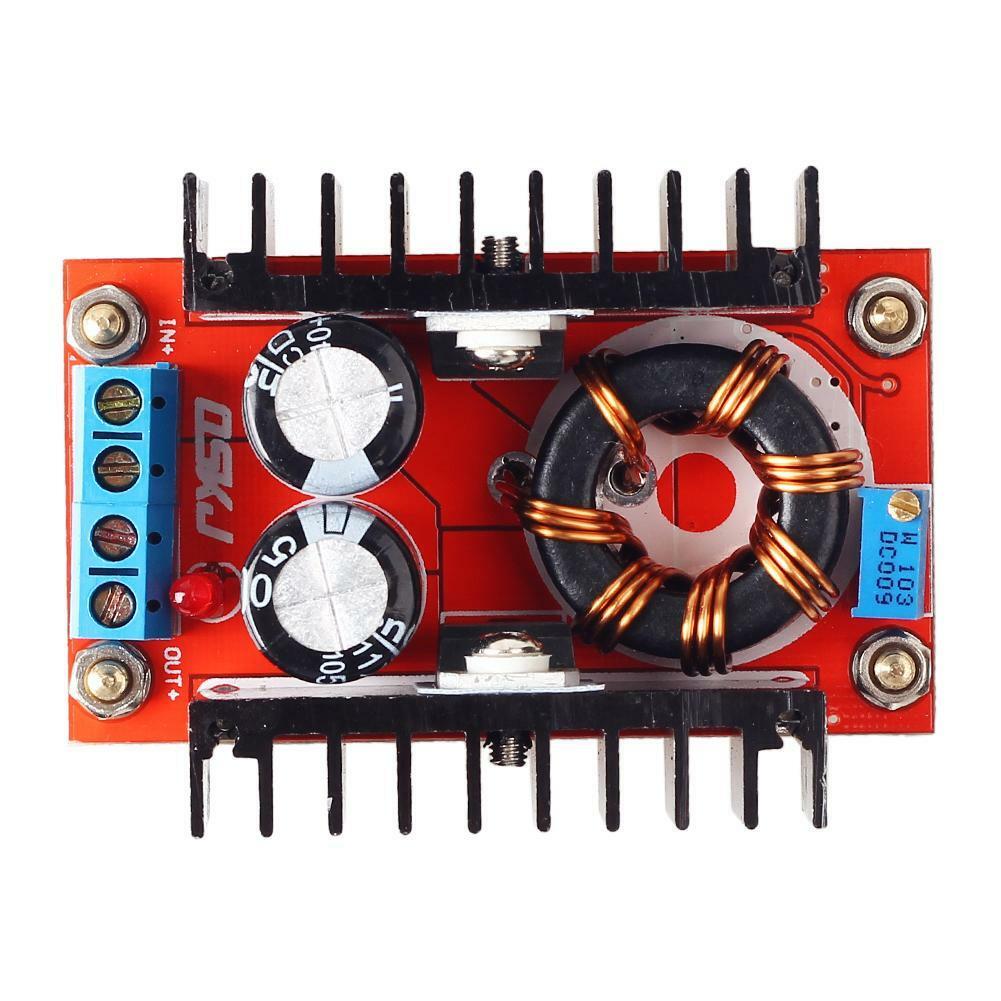

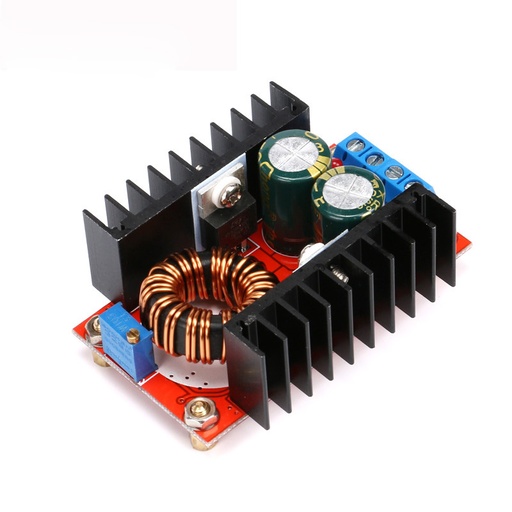

DC-DC Converter 150W 12V to 24V Step Up Module QS-1224CBD-100W

https://www.satistronics.com/web/image/product.template/6721/image_1920?unique=99581fd
(0 review)

5.25 5.25 USD 5.25

¥ 37.50

Not Available For Sale


    This combination does not exist.


    SKU :
    1941726
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-1224CBD-100W

    Parameters:

    • Module Properties:  Non-isolated step-up module (BOOST)

    • Input Voltage: DC 10-32V

    • Output Voltage: DC 12-35 V (adjustable)

    • Maximum Input Current: 16 A (Higher than 10A need cooling)

    • Maximum Output Current: 10 A(max)

    • Power: 100W(MAX,Natural cooling),Strengthen cooling 150W(MAX,Actual power)

    • Conversion efficiency: 94% (Input 16V output 16V 2.5A test result, for reference)

    • Output ripple: 2%(max) 20M bandwidth

    • Operating Temperature: Industrial (-40 ℃ to +85 ℃),( environmental temperature, more than 40℃, please reduce  power to use, or enhance cooling)

    • Full Load temperature rise: 45 ℃

    • No-load Current: Typical 25mA

    • Load Regulation: ± 0.5%

    • Voltage Regulation rate: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short-circuit Protection : None (Please install fuses or protection circuits at input port if you need.)

    • Input Reverse Protection: None (please comply with a reverse protection or connect a diode at input parts.)

    • Size: 65(L) x 47(W) x 23.5(H) mm

    Applications:

    • Adjustable Output Car Power Boost Charger

    • Power supply for your electronic equipment

    • DIY a boost charger

    • Solar battery charger for electric vehicles.
