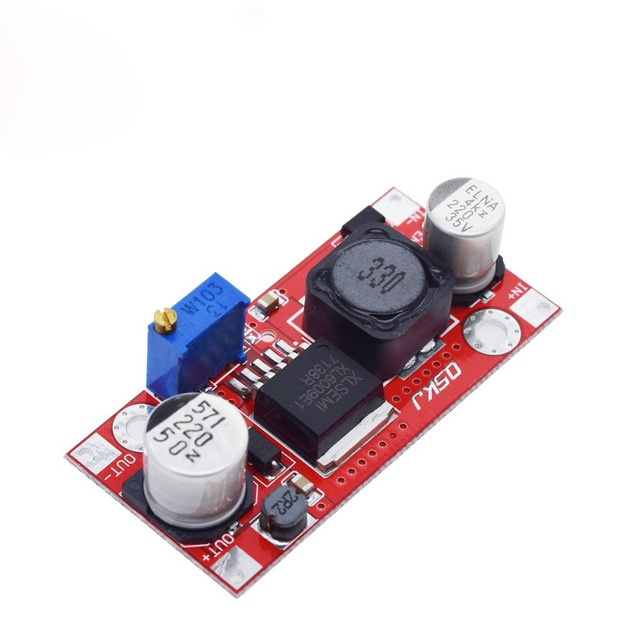

DC-DC Step Up Module 5-32V to 5-50V XL6009/XL6019 Adjustable Module QS-0524CBDE-15W

https://www.satistronics.com/web/image/product.template/6710/image_1920?unique=7094c28
(0 review)

1.12 1.12 USD 1.12

¥ 8.00

Not Available For Sale


  • Version

This combination does not exist.


Categories :
Step Up Boost Module
SKU :
23111338
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Brand: QSKJ

Model:  QS-0524CBDE-15W

Features:

  • The new original XLSEMI chip, eliminate fake, disassemble chip.
  • Imported SMD electrolytic capacitors, not accompanied by homemade capacitance.
  • Up to 400Khz operating frequency, and LC filter circuit, output ripple is very low.
  • Import TDK inductors, the heat and noise to a minimum.
  • Input and output three MLCC Multilayer ceramic capacitors, interference enhance stability.
  • PCB use kb of A grade sheet material, to prevent cardboard, garbage plate.
  • Built-in MOSFET, the LM2577 built-triode say goodbye, can reach 94% efficiency.
  • Increased enable the port, you can control whether the boost circuit.
  • Dimensions: 49 (L) * 23.4 (W) * 11.4 (H) mm (excluding potentiometer)

Parameters:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage: 5-32V
  • Output voltage: (1) continuously adjustable (5-50V)
  • Output Current: 2.5A (MAX)
  • Input Current: 4A (MAX)
  • Output power: natural cooling 15W, plus heat sink 25W (MAX) real power
  • Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency
  • Full load temperature rise: 45 C
  • Operating frequency: 400khz
  • Load current: 5V turn 12V 15mA, 8.4V turn 12V 7mA, 12V switch 24V 9mA, 12V switch 36V 18mA, 24V switch 48V 9mA, 24V switch 36V 6mA.
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Enable Control Port: Yes, high 1.4V-VIN (ON), low 0-0.8V (OFF), the default high
  • Short circuit protection: None (Please install fuse or protection circuit input)
  • Input reverse polarity protection: None, please with our reverse protection diode board or in the input series.
  • Installation: You can screw (Fixing holes 3 mm), 2 fixing holes
  • Operating temperature: Industrial grade (-40 C to + 85 C) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
  • Conversion efficiency: the efficiency of the measured voltage and current commonly used (hereinafter, for reference only)

           A=Input voltage. B=Input Current. C=Output voltage. D=Output Current. E=conversion efficiency
