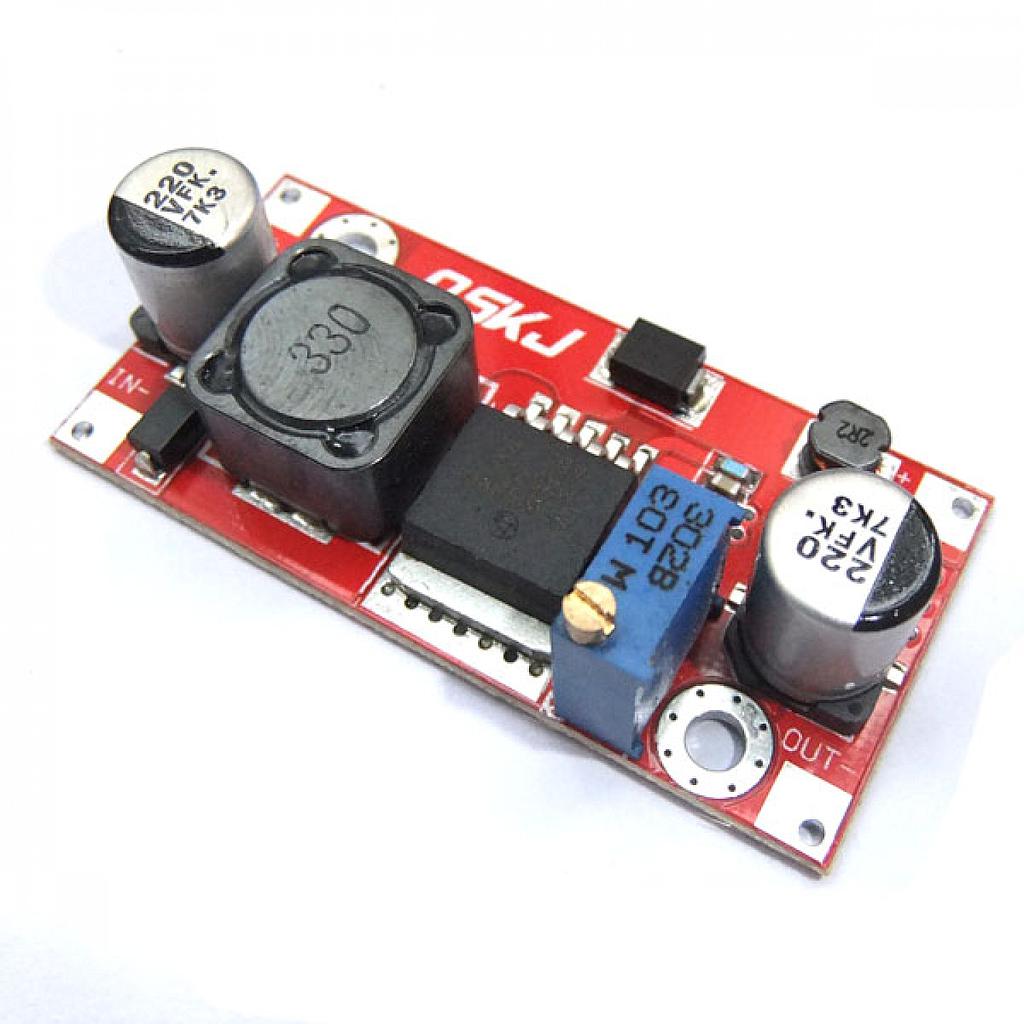

DC-DC Converter 3-34V to 4-60V LM2577 Step Up Module QS-0348CBD-15W

https://www.satistronics.com/web/image/product.template/6724/image_1920?unique=99581fd
(0 review)

3.22 3.22 USD 3.22

¥ 23.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941729
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-0348CBD-15W

    Parameters:

    • Module Properties: non-isolated step-up module (BOOST)

    • Input voltage :3-34V

    • Output voltage: adjustable (4-60V)

    • Output current: 2.5A (MAX)

    • Input Current: 3A (MAX)

    • Output power: natural cooling 15W, heat sink 25W(MAX) (this item do not including heat sink)

    • conversion efficiency: 90%

    • Maximum output power = input voltage * 3A * conversion efficiency

    • Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40°c, lower power use, or enhance heat dissipation)

    • Full load temperature rise: 45°c

    • No-load current: Typical 15mA (5V to 12V)

    • Load regulation: ± 0.5%

    • Voltage regulation: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

    • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

    • Installation: You can screw (diameter 3 mm), 2 fixing holes

    • Connection: Welding, pin can be directly soldered to a PCB

    Converse Efficency:

    • Input 3.7V  Output 5V  1A   Efficiency 81%

    • Input 5V    Output 12V 0.5A  Efficiency 84%

    • Input 7.4V  Output 12V 0.5A  Efficiency 90%

    • Input 7.4V  Output 12V 1A    Efficiency 88%

    • Input 12V   Output 16V 1A    Efficiency 92%

    • Input 12V   Output 16V 2A    Efficiency 90%

    • Input 12V   Output 19V 1A    Efficiency 91%

    • Input 12V   Output 19V 1.5A  Efficiency 92%

    • Input 12V   Output 24V 0.5A  Efficiency 89%

    • Input 12V   Output 24V 1A    Efficiency 88%
