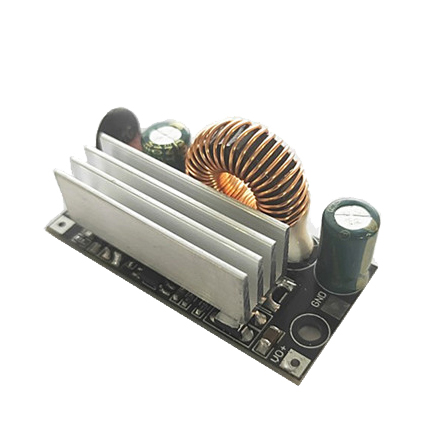

DC-DC Converter DC8-88V to 12/5V Step Down Power Supply Module QS-880512DD-3A
Categories :
Car Power Module series , Step Down Buck Module , CC/CV series , Charging Power Module , Low Ripple Power ModuleSKU :
2044343
100% original guarantee
Return within 30days
Worldwide Fast delivery
Brand: QSKJ
Model: QS-880512DD-3A
Features:
1. Replace the rectifier diode with a dedicated power MOSFET with very low on-state resistance to reduce rectification losses
2. Synchronous rectification technology is adopted to improve conversion efficiency and reduce heat generation of the power supply itself
3. Adopted of high quality electronic components, and accuracy process, ensure for the durability
4. High conversion efficiency, with input anti-reverse connection function
5. Suitable for applications where the input voltage is higher than the output voltage
Specification:
Item Type: Step Down Module
Input Voltage: 10-88VDC
Output Voltage: 5/12/24VDC(other voltage can be customized)
Output Current: Maximum 3A
Maximum Power: 30W (maximum current 3A at low voltage output)
Working Frequency : 140KHZ
Input Anti-Reverse Connection: No
Aluminum Case Size: 50*23*20mm
Package List:
1 x Step Down Module
