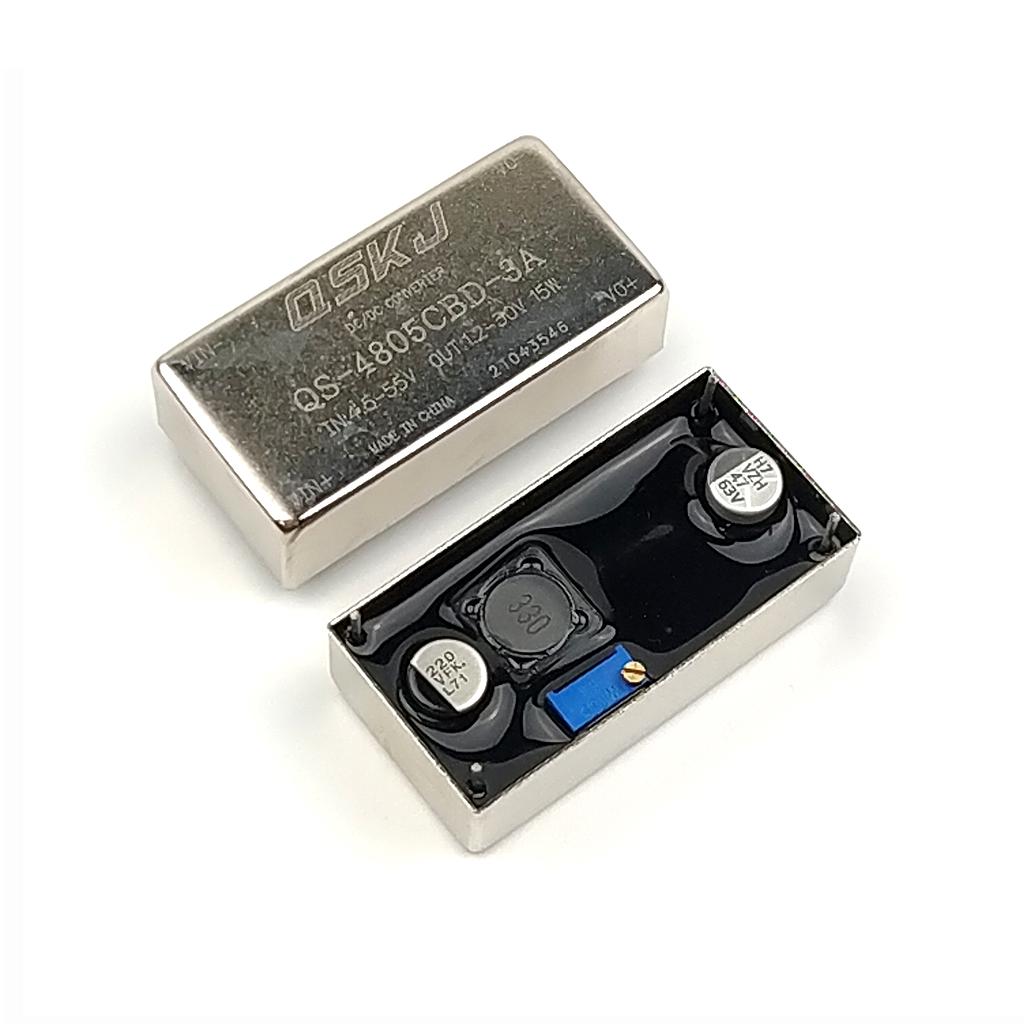

DC-DC Converter LM2596HV 4.5-55V Adjustable Step-down Power Supply Module with Case QS-4805CBD-3A

https://www.satistronics.com/web/image/product.template/6703/image_1920?unique=9ef1406
(0 review)

5.74 5.74 USD 5.74

¥ 41.00

Not Available For Sale


    This combination does not exist.


    SKU :
    1941707
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model: QS-4805CBD-3A

    Parameters:

    • Module Properties: Non-isolated step-down module (buck)

    • Rectifier mode: Synchronous rectification

    • Input voltage: 1.5-55V

    • Output voltage: 1.25V-30V

    • Output power: 6W

    • Maximum capacitive load: 1000UF

    • Output current: 25A

    • Conversion efficiency: 92% (highest)

    • Operating temperature: industrial - grade (-40 ° c to + 85 ° c)

    • The maximum case temperature at working: 100 ° c

    • Full load temperature rise: 50 ° c

    • Load regulation: ± 0.5 %

    • Voltage regulation: ± 0.5 %

    • Bandwidth: 20M

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: current limit, self-recovery

    • Wiring: Welding

    • Recommended input and output capacitors: input capacitance 10UF (ceramics), the output capacitor 22UF (ceramic)

    • Input 12V output ripple 5V 3A 15mV(max)

    • Input 24V output ripple 12V 3A 40mV(max)

    • Output ripple: 0.5A load current (typical application circuit, the input of ceramic capacitors 10UF, output ceramic capacitors 22UF)
