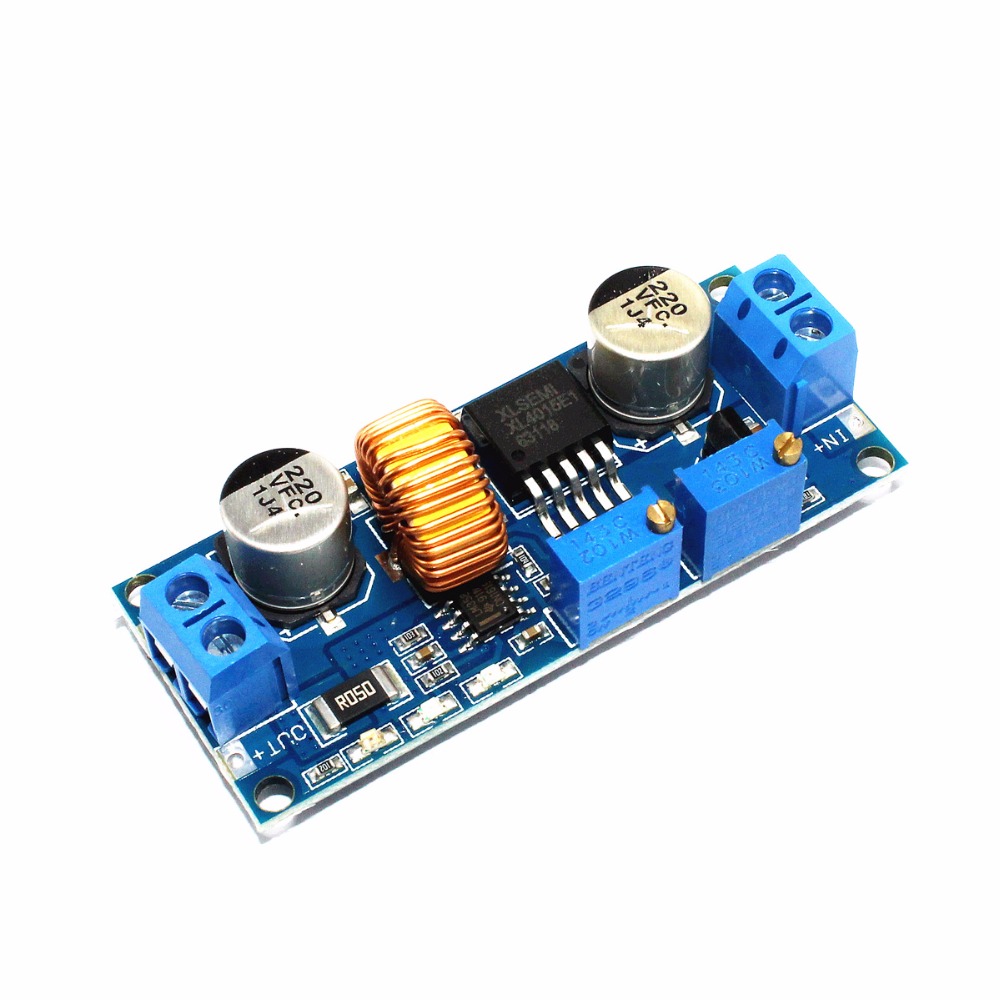

K21 5A CC CV Step-down Power Supply Module Lithium Battery Charger

https://www.satistronics.com/web/image/product.template/6785/image_1920?unique=99581fd
(0 review)

1.68 1.68 USD 1.68

¥ 12.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Down Buck Module
    SKU :
    1941841
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Product Description:

    • High power, high efficiency, 5A, low ripple;

    • Three in one:

              Use as an ordinary buck module with overcurrent protection capability;

              As a variety of voltage value lithium battery, battery, nickel-cadmium nickel-metal hydride battery (battery pack) charger for solar panels, wind turbines                and other occasions;

              Use as a high-power LED constant current driver module;

    • With constant voltage and constant current two modes, there are indicators to indicate which mode the module is currently in;

    • When used as a lithium battery charger, you can set the float voltage and charge current, with indicator light

    • With current limit protection, even if the output is short circuit, it will not burn out the module.

    Parameters:

    • Input voltage: 4-38V

    • Output voltage: 1.25-36V continuously adjustable

    • Output current: adjustable, up to 5A

    • Output power: maximum 75W

    • Working temperature: -40~+85 degrees

    • Operating frequency: 180KHz

    • Conversion efficiency: up to 96%

    • Short circuit protection: Yes (limited current 8A)

    • Over-temperature protection: Yes (automatic shutdown output after over-temperature)

    • Reverse input protection: No, (Please input high-current diode in series if necessary)

    • Installation method: 4 pieces of 3mm wire

    • Wiring: terminal or welding terminal, V-IN is input, V-OUT is output

    • Module size: length 61.7mm width 26.2mm height 15mm
