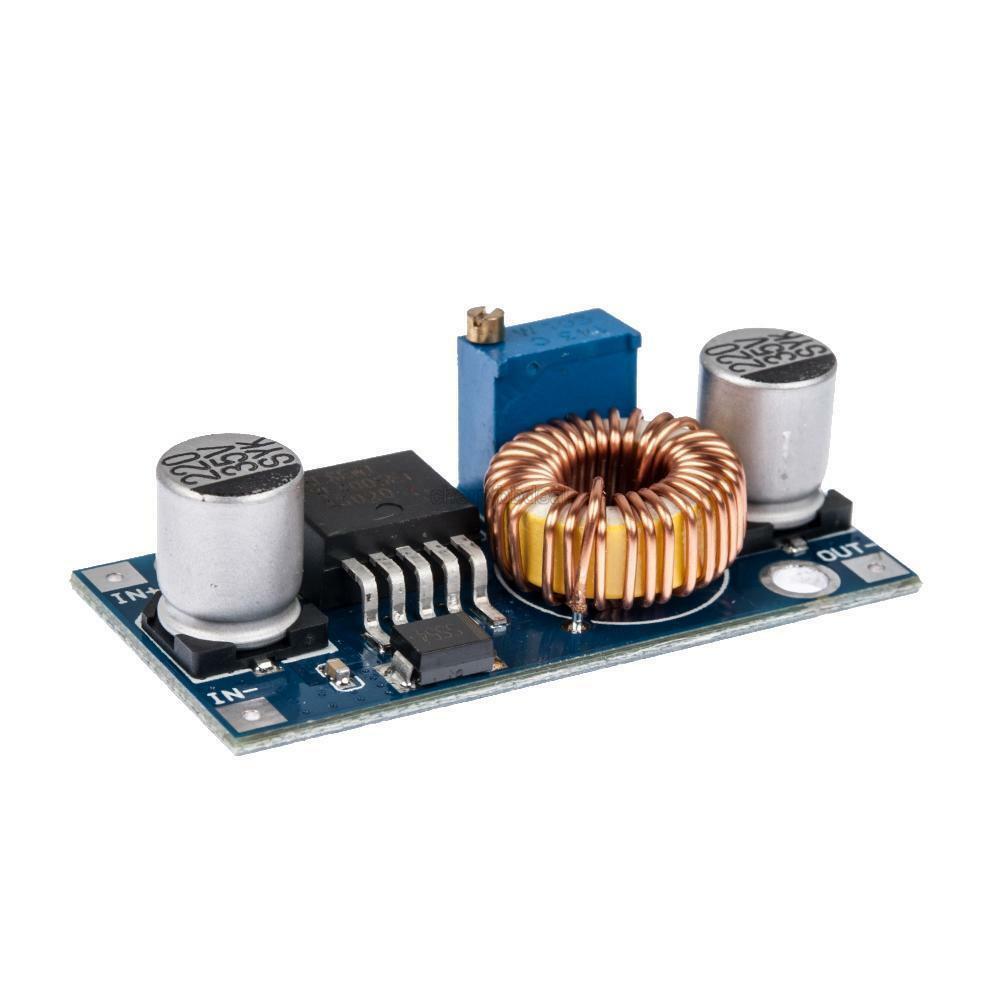

Q92 5A DC-DC Adjustable Step-down Power Supply Module than LM2596

https://www.satistronix.com/web/image/product.template/6751/image_1920?unique=d8c7308
(0 review)

1.38 1.3800000000000001 USD 1.38

¥ 10.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Down Buck Module
    SKU :
    1941800
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Parameters:

    • DC-DC Step Down Module

    • The step-down module can easily reach 4a, 50w, add heat sink can reach 75w

    • Module properties: step-down module (BUCK)

    • Input voltage: 4-35v (please try not to exceed 38v)

    • Output voltage: 1.25-32v continuous adjustable

    • Output current: 0-5A, recommend to use below 4.5A

    • Output power: recommend to use below the 75w, if more than 50w please add heat sink

    • Working temperature: -40 ~ +85 degrees

    • Working frequency: 180 KHZ

    • Conversion efficiency: max 96% (difference due to input and output voltage, current, pressure)

    • Load regulation: S (I) ≤0.8%

    • Voltage regulation: S (u) ≤0.8%

    • Power light: yes

    • Short circuit protection: yes(limit current 8A)

    • Overtemperature protection: yes(shut off output automatic after overtemperature)

    • Input reverse connect protection: no, (if need this function, pls connect high current diode on input string)

    • Installation method: 2pcs 3mm screw

    • Connection mode: welding, V - IN is input, V - OUT is output

    • Color is shown as pictures

    Dimension:


    Note: Due to lighting effects, monitor"s brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!
