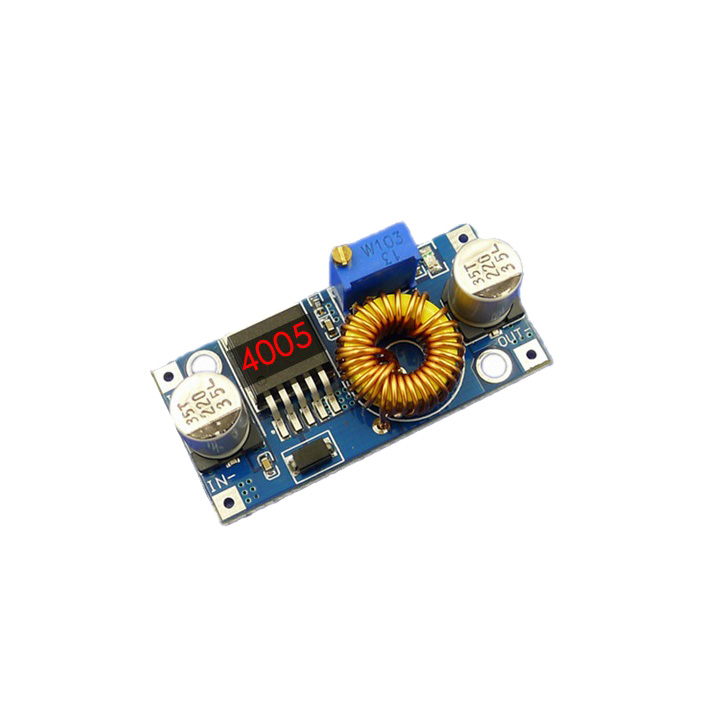

XL4005 XL4015 DC-DC Adjustable Step Down Module Power Supply Converter QS-2405CBD-5A

https://www.satisled.com/web/image/product.template/6693/image_1920?unique=23c53c7
(0 review)

0.89 0.89 USD 0.89

¥ 6.50

Not Available For Sale


  • Part Number

This combination does not exist.


Categories :
Step Down Buck Module
SKU :
1941691
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Brand: QSKJ

Model: QS-2405CBD-5A

Parameters:

  • Module properties: non-isolated step-down module ( BUCK )

  • Rectification: non-synchronous rectifier

  • Input voltage: XL4005: DC5-32V ; XL4015: 8-35V

  • Output voltage: XL4005: DC0.8-30V ; XL4015: 1.25-30V

  • Output current: 0A ~ 5A

  • Output power: 75W ( more than 50W please add heat sink )

  • Operating Frequency: XL4005: 300KHz ; XL4015: 180KHz

  • Operating Temperature: -40°C ~ +85°C

  • Load regulation: S(I)≤0.8%

  • Voltage regulation: S(u)≤0.8%

  • Module Size: 45mm(L)*21mm(W)*14mm(H)

  • Protection: short circuit and over temperature

Applications:

Reduce the voltage from a source such as a battery, a voltage source, chargers, etc., to one less desired voltage using a very efficient process compared to the traditional linear regulators
