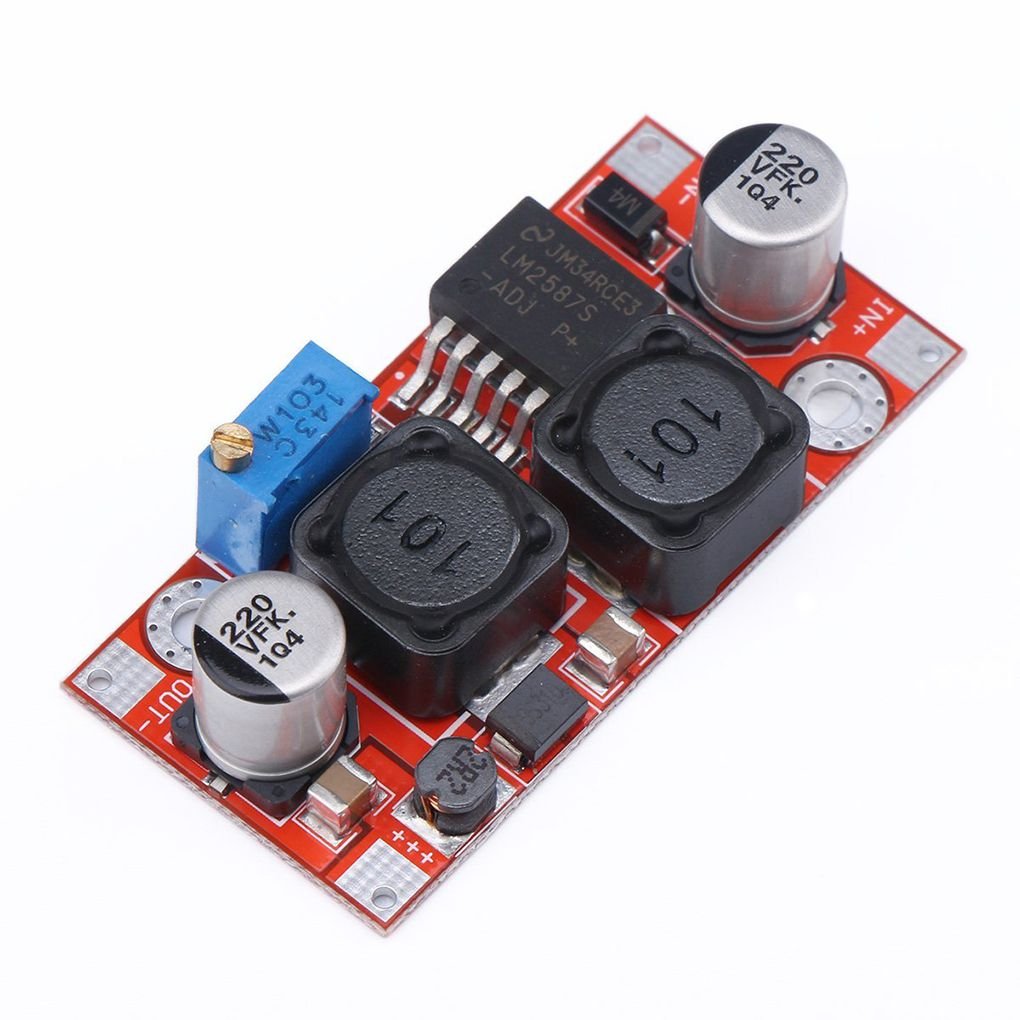

DC-DC Converter 3-35V to 1.2-30V 2A Auto Step Up Down Module

https://www.satistronics.com/web/image/product.template/6696/image_1920?unique=99581fd
(0 review)

4.20 4.2 USD 4.20

¥ 30.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Down Buck Module
    SKU :
    1941697
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model: QS-1212CBD-24W

    Features:

    • Connection: welding, can be directly welded on the PCB after adding the pins.

    • This is a non-isolated buck-boost converter module for converting 3-35V to 1.2-30V.

    • The module is compact for easy carrying and simple installation.

    Parameters:

    • Material: metal.

    • Color: show as pictures.

    • Size: 49*23.4*11.4 mm.

    • Input voltage: DC 3-35V.

    • Output voltage: DC 1.25-30V (adjustable).

    • Output Current: 2A (when 9-35V input and 12V output, if 5V output can achieve 3A).

    • Input Current: 3.5A (MAX).

    Notes:

    • Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

    • Please allow slight dimension difference due to different manual measurement.
