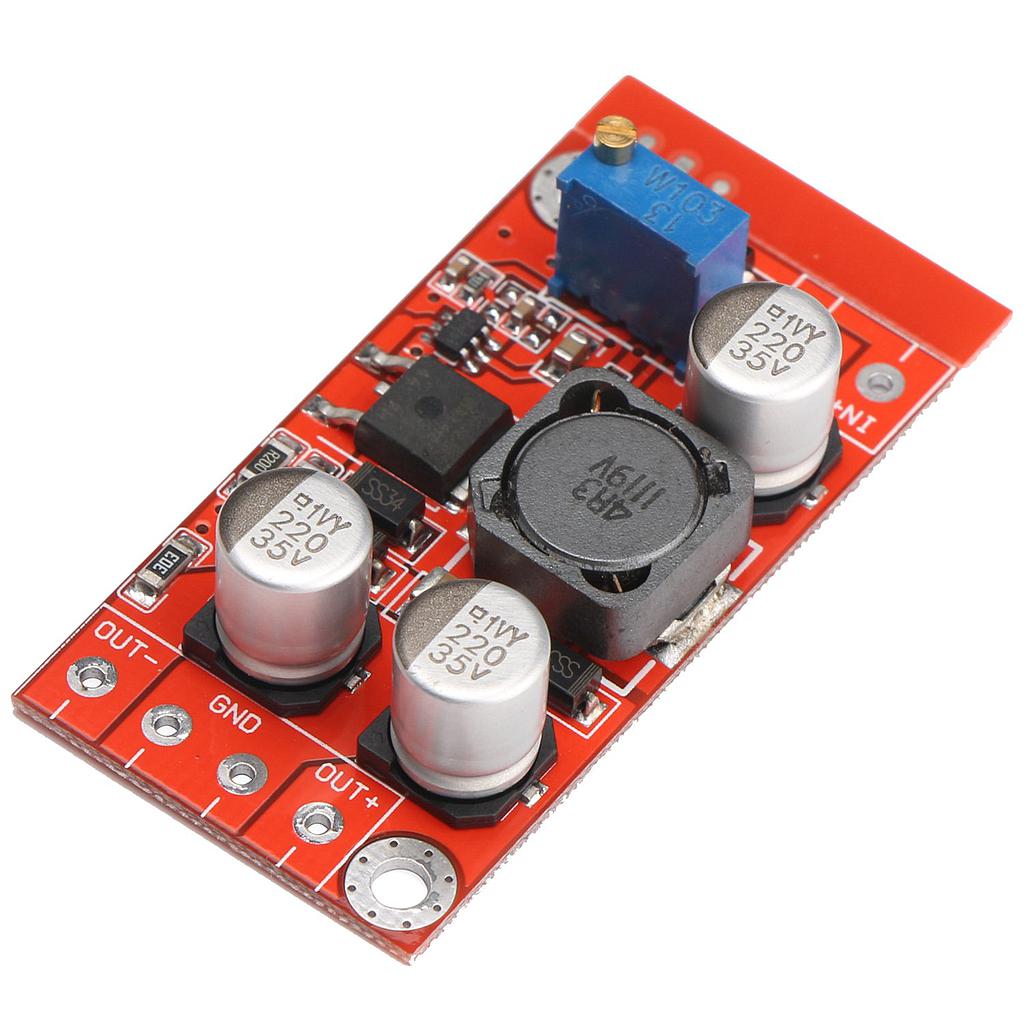

DC-DC Converter 3-6V to 5-32V Step Up Module QS-0324CA-5W

Brand: QSKJ

Model: QS-0324CA-5W

Features:

• It is a non-isolated step up module, positive and negative dual output

• Input Voltage: DC 3-6v; output Voltage: DC 5-32v(continuously adjustable)

• Input current: 3A (max); output current: 0 3A (max)

• High conversion efficiency, up to 70-85 percent

• Output power: natural cooling 5W

Parameters:

• Module Properties: non-isolated step-up module (positive and negative Dual output)

• Input Voltage: DC 3-6V

• Output Voltage: DC 5-32V

• Output Current: 0.3A (MAX)

• Input Current: 3A (MAX)

• Output Power: Natural cooling 5W

• Conversion Efficiency: 70-85%

• Output Ripple: 20M bandwidth of 2%

• Operating Temperature: Industrial (-40°c to +85°c) (If ambient temperature exceeds 40°c, please lower power use, or to enhance heat dissipation)

• Full Load Temperature Rise: 35°c

• No-load Current: Typical 8mA (5V to +/- 24V)

• Load Regulation: positive +/- 1%, negative +/- 5%

• Voltage Regulation: +/-1%

• Short Circuit Protection: None (Please install fuses or circuit protection at the input port.)

• Input Reverse Polarity Protection: None (Please Series diode at the input port.)

• Installation: screw (diameter 3 mm), 2 fixing holes
