100W DC-DC Buck Converter 10-90V to 2V-60V Step-down Power Voltage Regulator Module

https://www.qskj.cc/web/image/product.template/7046/image_1920?unique=711d32c
(0 review)

7.41 7.41 USD 7.41

¥ 52.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Down Buck Module
    SKU :
    2144766
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Feature:

    • 1. Replace the rectifier diode with a dedicated power MOSFET with very low on-state resistance to reduce rectification losses

    • 2. Synchronous rectification technology is adopted to improve conversion efficiency and reduce heat generation of the power supply itself

    • 3. Adopted of high quality electronic components, and accuracy process, ensure for the durability

    • 4. High conversion efficiency, with input anti-reverse connection function

    • 5. Suitable for applications where the input voltage is higher than the output voltage

    Specification:

    • Item Type: Step Down Module

    • Input Voltage: 10-90VDC

    • Output Voltage: 2-60VDC Adjustable (for applications where the input voltage is higher than the output voltage)

    • Output Current: Maximum 6A (use derating when high voltage output, external heat dissipation is required for module temperature over 65 degrees)

    • Maximum Power: 100W (maximum current 6A at low voltage output)

    • Working Frequency : 180KHZ

    • Conversion Efficiency : 97.5% (typical)

    • Input Anti-Reverse Connection: Yes

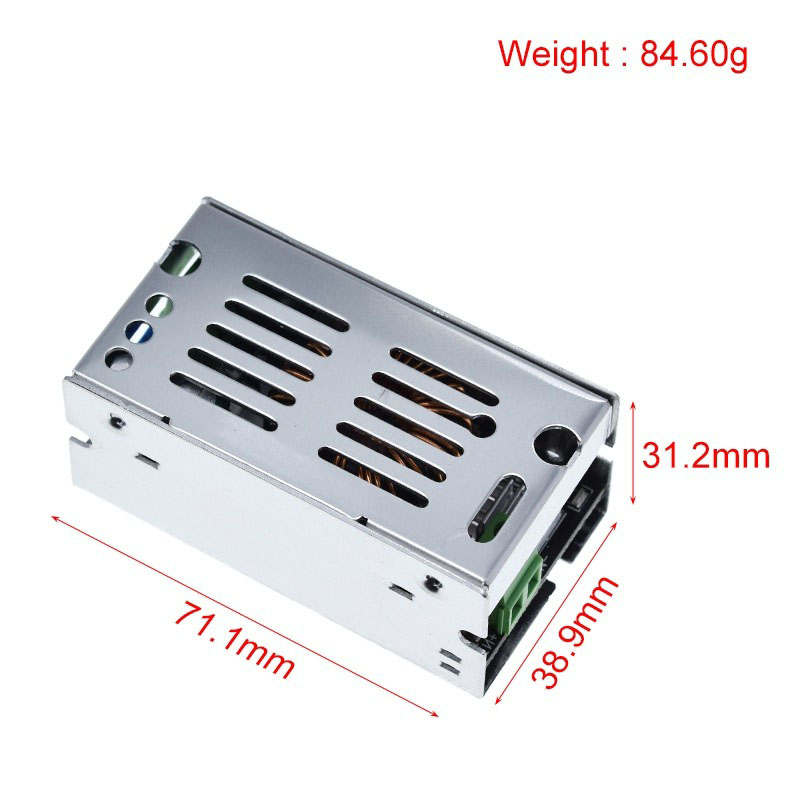

    • Aluminum Case Size: Approx. 70 x 38 x 31mm / 2.8 x 1.5 x 1.2in
