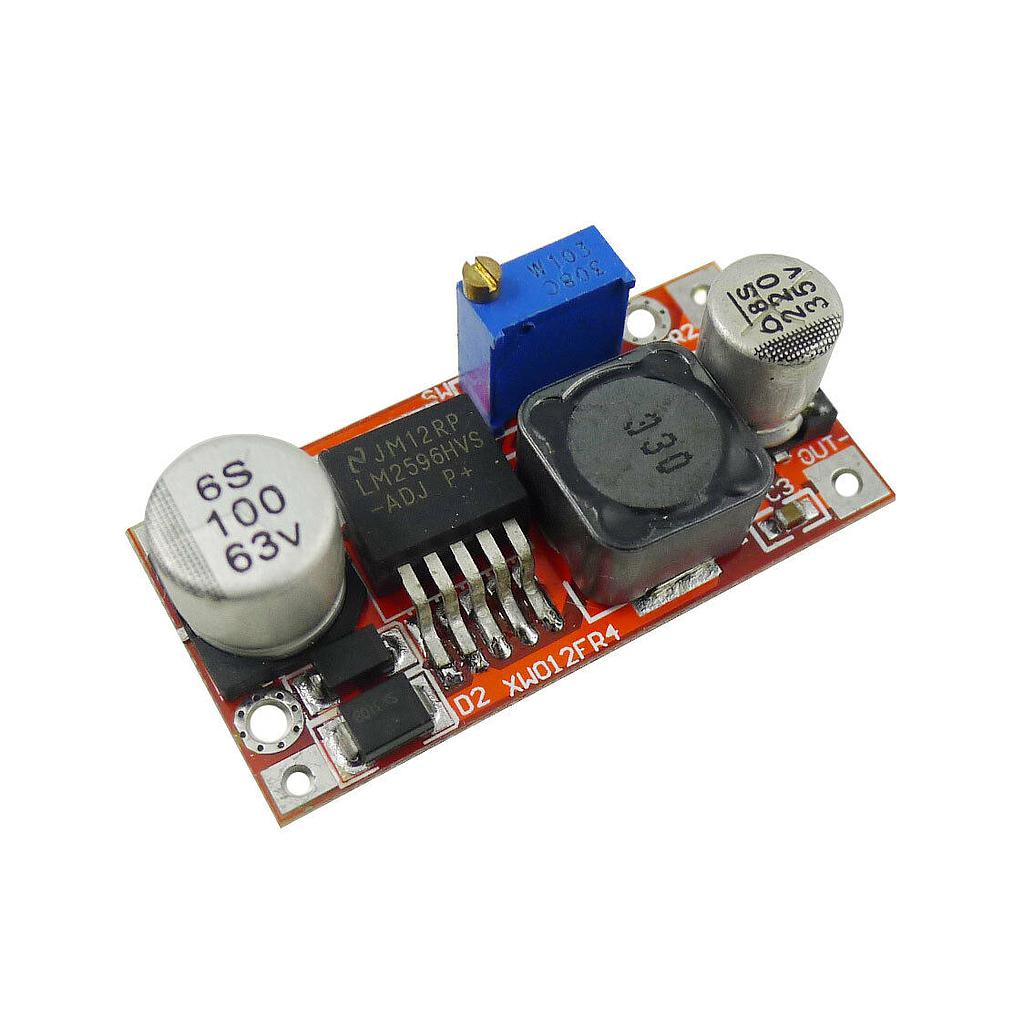

Brand: QSKJ
Model: QS-4805CBD-3A
Parameters:
Input voltage: 4.5 to 60V
Output voltage: adjustable 1.25-35V ; fixed output 1.25-30V
Output current: rated current 2A, , maximum 3A
Output power: maximum 15W
Conversion efficiency: up to 92%
Static power consumption is only about 6mA.
Working temperature: industrial grade (- 40 to + 85 degrees)
Dimension: 49 * 23.5 * 12.5 mm wide (included potentiometer).
Input mode: IN + input positive, IN - input negative
Output mode: OUT + output positive, OUT - output negative
Load regulation: ±1%
Voltage regulation: ±0.5% (in order to reach the point at which the no-load output voltage will be higher, but as long as there is with 1 mA load, the output voltage is normal, does not affect the function, please be assured that use.)
Short circuit protection: current limiting, overheating protection, but since the recovery.
