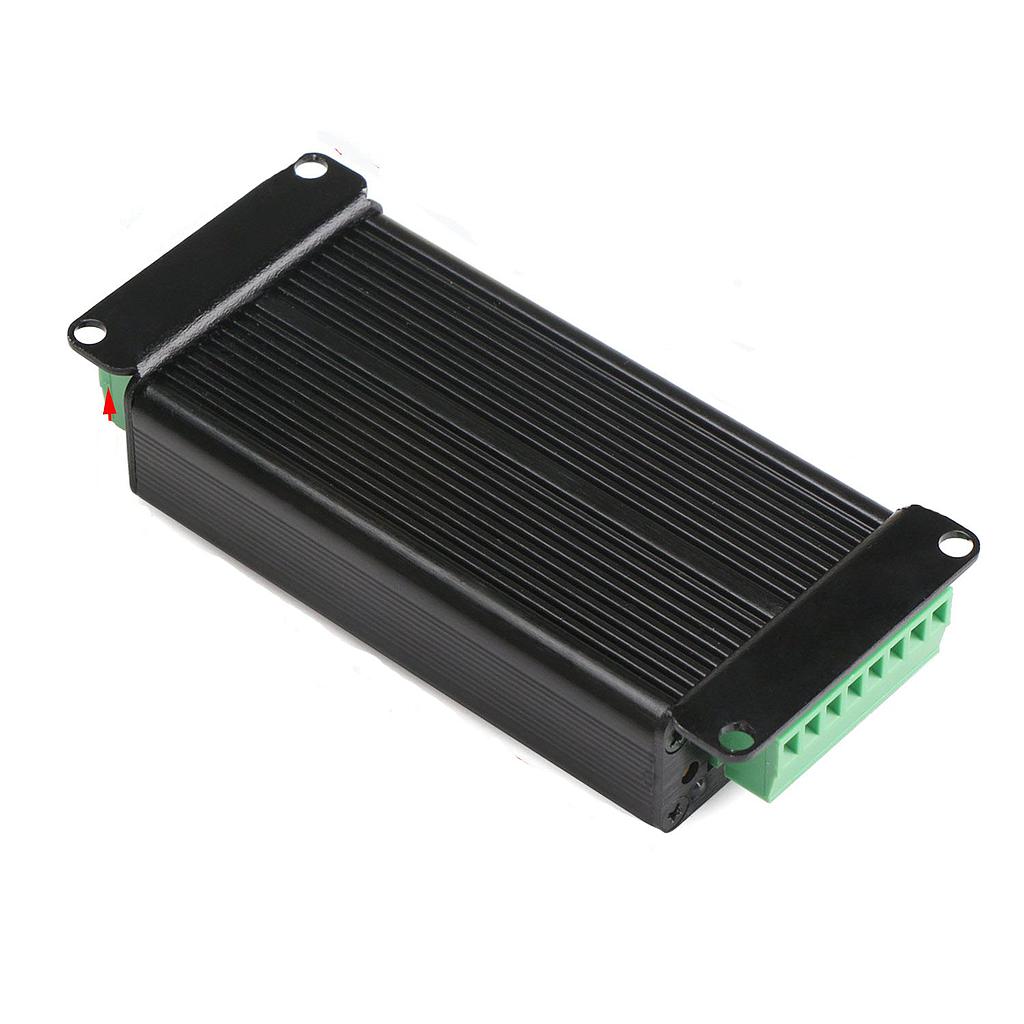

DC-DC Converter 6-32V to 0.8-28V Buck-boost Module QS-1212CBA-80W

https://www.qskj.cc/web/image/product.template/6732/image_1920?unique=fb4d6cf
(0 review)

42.32 42.32 USD 42.32

¥ 297.00

Not Available For Sale


    This combination does not exist.


    SKU :
    1941754
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model: QS-1212CBA-80W

    Parameters:

    • Module Properties: non-isolated buck-boost module, Constant current, Constant voltage

    • Input voltage : 6-32V

    • Output voltage : 0.8-28V (adjustable) ; 0.8-28V (arbitrary selection between 0.8-28V)

    • Output current  : 8A (MAX)

    • Output power: 80W (MAX)

    • Output ripple: 20M bandwidth; 1% (MAX)

    • Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation), case surface temperature should not exceed 90°c.

    • Full load temperature rise: 40°c

    • No-load current: Typical 45mA (12V switch 12V)

    • Load regulation: ± 1%

    • Voltage regulation: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: Yes (current limit, current limit is constant value)

    • Voltage protection: 33V

    • Input Reverse Polarity Protection: Yes.

    • Dimension: 101(L)*45(W)*19(H)

    Applications:

    • Battery voltage regulator

    • DIY Power Supply.

    • Solar charging regulator

    • DIY Charger

    • Power for your electronic equipment
