Specifications:
- Single Cell overcharge protect voltage: 4.23 - 4.28V
- Single Cell overcharge rotect recover voltage: 4.08 - 4.18
- Overcharge protect delay: 0.5 - 1.5S
- Single Cell over-discharge protect voltage: 2.72 - 2.88V
- Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V
- Overcharge protect current: 60A
- Over-discharge protect current: 60A
- Over-discharge protectdelay: 0.5 - 1.5S
- Temperature protect: YES
- Disconnect protect: YES
- Shortage protect: YES
- Shortage delay: 100 - 600μS
- Shortage protect recover: YES
- Charging current: 25A
- Discharging current: 25A
- Charging voltage : 12.6V for 3S BMS board
- 16.8V for 4S BMS board
- 21V for 5S BMS board
You can change the Series by adjusting the oΩ resistor(or shortcut by tin) as bellow:
Package Included:

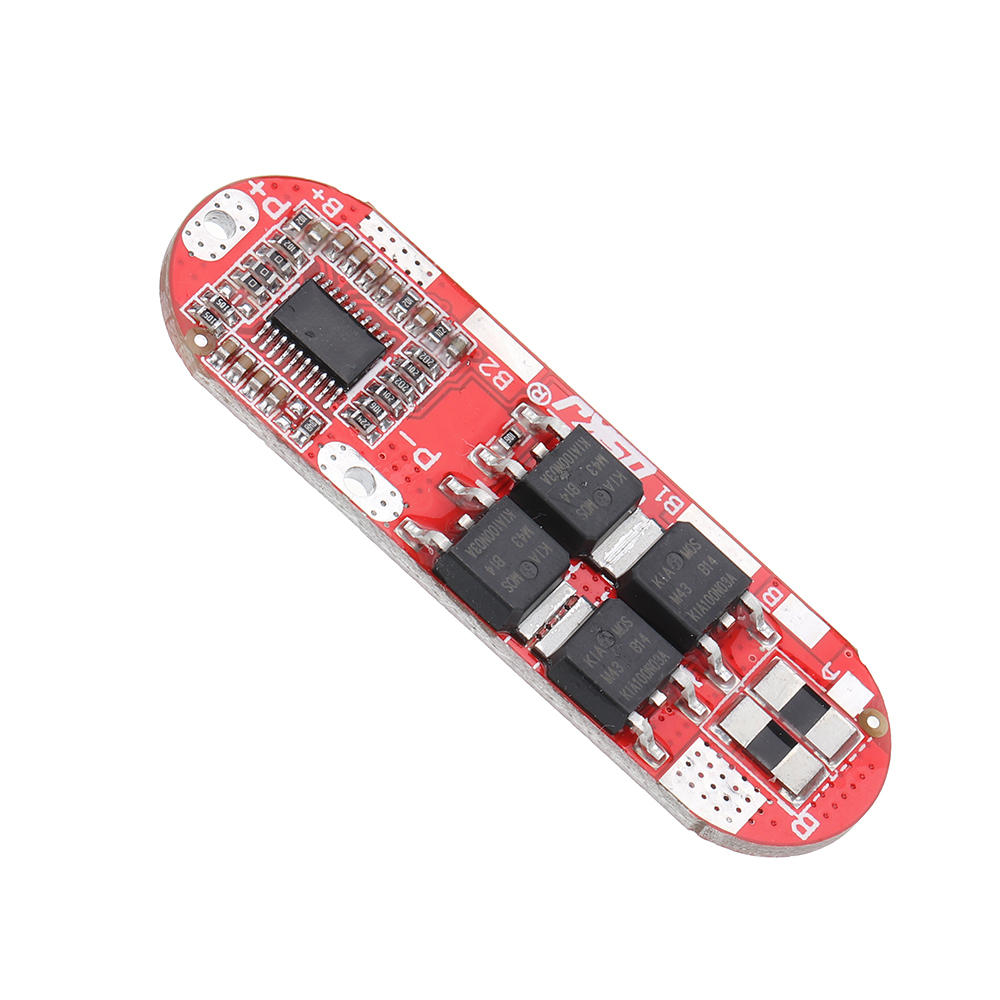

1 x 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board
