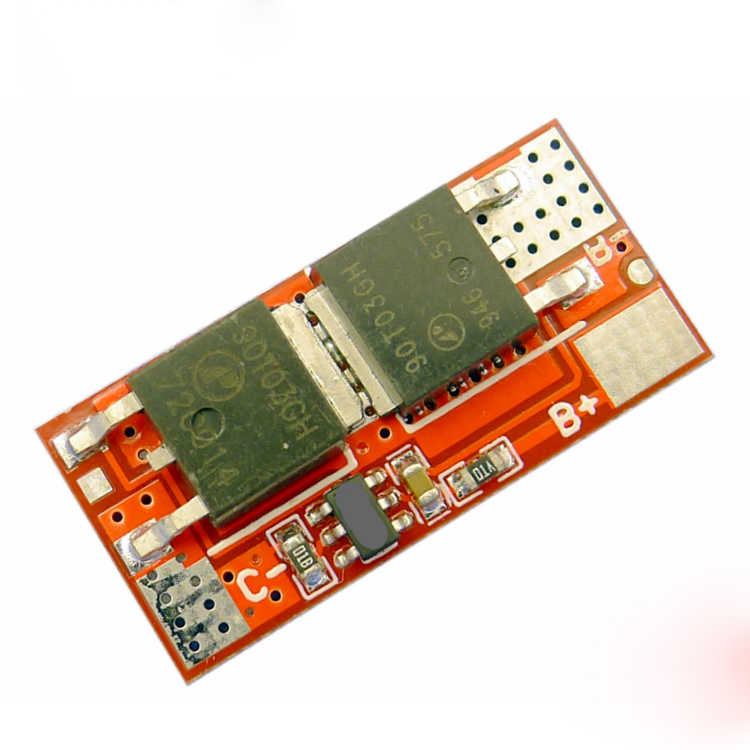

1/2 Series Large Current Ternary PCB Lithium Battery Protection Board QS-B401ANL-20A/QS-B402ANL-25A

Price:

21.00


9W High Power Imitation Lumen RGB Led Four Feet
9W High Power Imitation Lumen RGB Led Four Feet
1.11
1.11
100W Recharge Portable LED Floodlight Lithium 18650 Battery 2400LM Outdoor Working Light
100W Recharge Portable LED Floodlight Lithium 18650 Battery 2400LM Outdoor Working Light
76.07
76.07

1/2 Series Large Current Ternary PCB Lithium Battery Protection Board QS-B401ANL-20A/QS-B402ANL-25A

https://www.satistronics.com/web/image/product.template/6739/image_1920?unique=99581fd
(0 review)

1.26 1.26 USD 1.26

¥ 9.00

Not Available For Sale


  • Type

This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Brand: QSKJ

Model: 1 series: QS-B401ANL-20A / 2 series: QS-B402ANL-25A

Parameters:

  • Single cell battery overcharge protect voltage : 4.25-4.35 V

  • Single cell battery overcharge  protect recover voltage : 4.05-4.15 V

  • Overcharge protect delay : 1S

  • Single cell battery over-discharge  protect voltage : 2.3-2.5V

  • Single cell battery over-discharge  protect recover voltage : 2.9-3.1 V

  • Overcharge protect Current : 16A

  • Over-discharge protect delay : 50-200mS

  • Disconnect protect : Yes

  • Short circuit protect : Yes

  • Short circuit delay : 50-100 uS

  • Charging current: 10A
