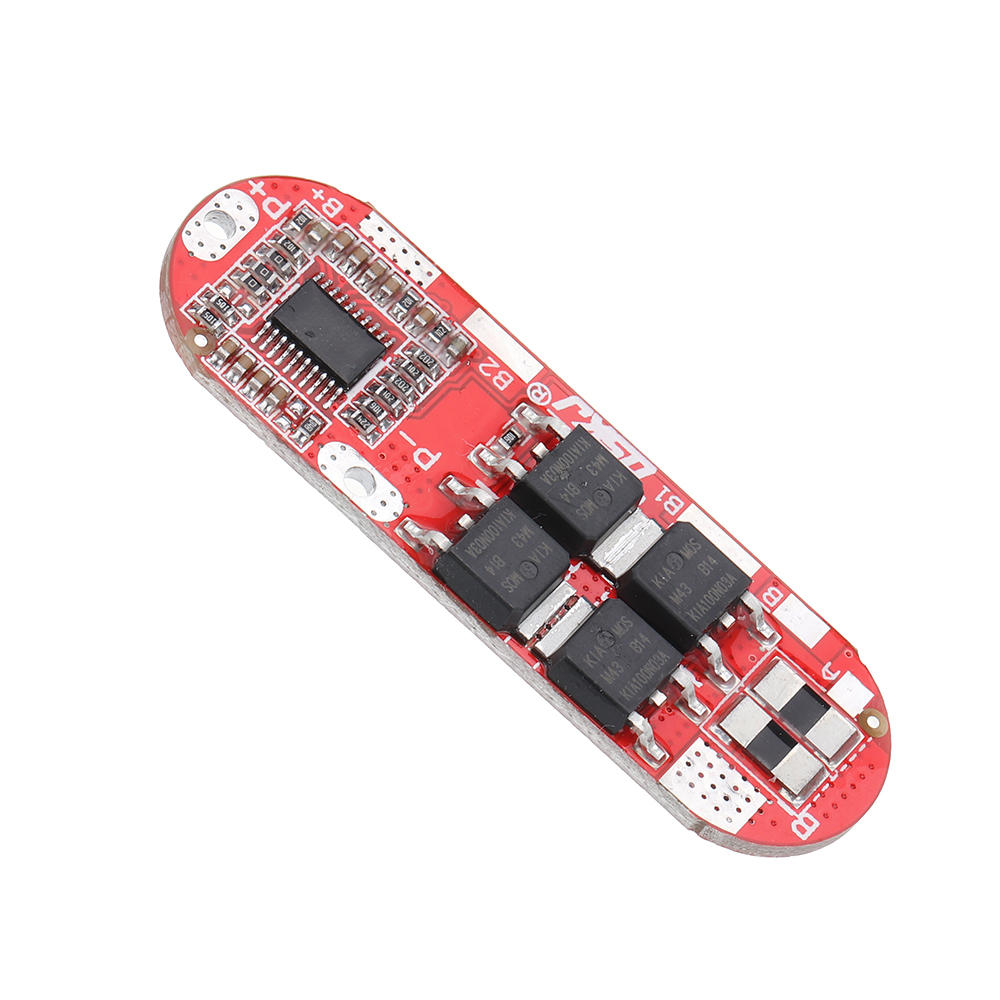

3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB QS-B405ANL-25A

https://www.satisled.com/web/image/product.template/7003/image_1920?unique=f4462d6
(0 review)

2.50 2.5 USD 2.50

¥ 18.00

Not Available For Sale


  • Type

This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Specifications:

  • Single Cell overcharge protect voltage:  4.23 - 4.28V

  • Single Cell overcharge rotect recover voltage:  4.08 - 4.18

  • Overcharge protect delay:  0.5 - 1.5S

  • Single Cell over-discharge protect voltage:   2.72 - 2.88V

  • Single Cell over-discharge rotect recover voltage:   2.9 - 3.1V

  • Overcharge protect current:  60A

  • Over-discharge protect current: 60A

  • Over-discharge protectdelay: 0.5 - 1.5S

  • Temperature protect: YES

  • Disconnect protect: YES

  • Shortage protect: YES

  • Shortage delay: 100 - 600μS

  • Shortage protect recover: YES

  • Charging current:  25A

  • Discharging current: 25A

  • Charging voltage : 12.6V for 3S BMS board

  •                                 16.8V for 4S BMS board

  •                                 21V for 5S BMS board

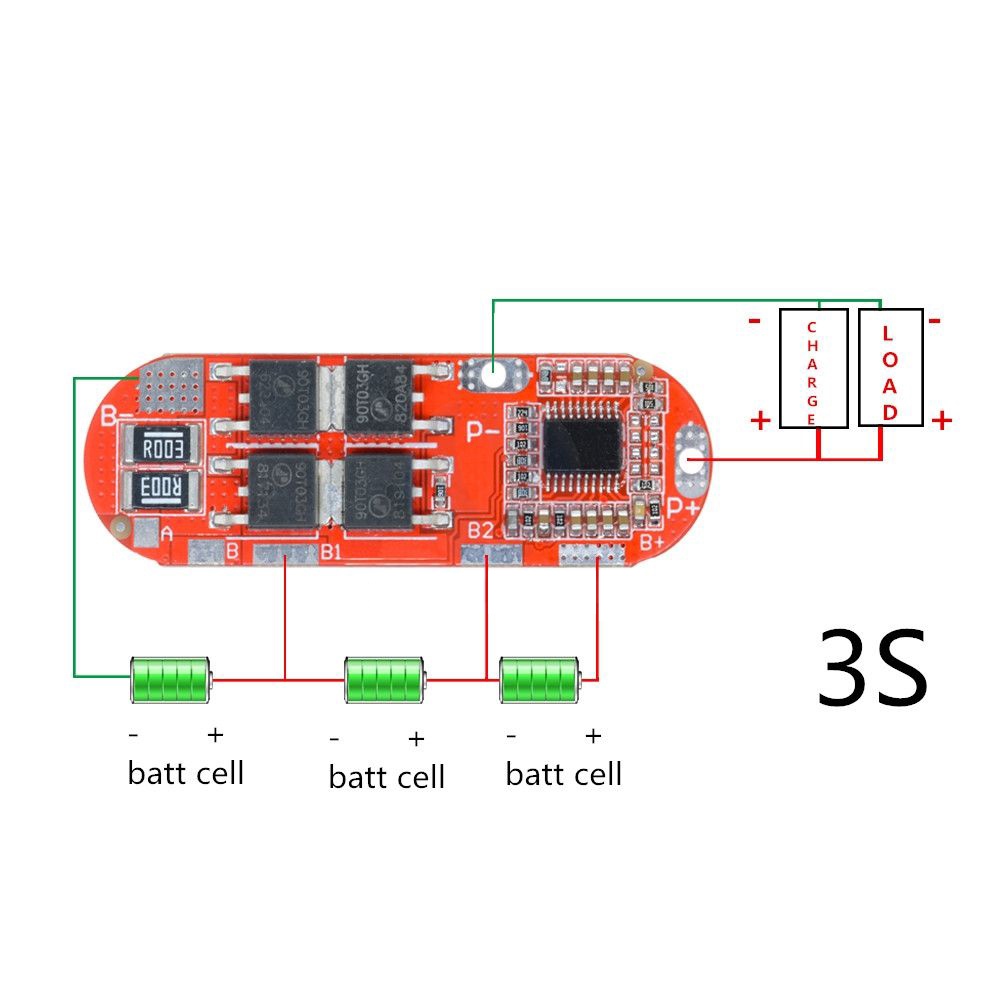

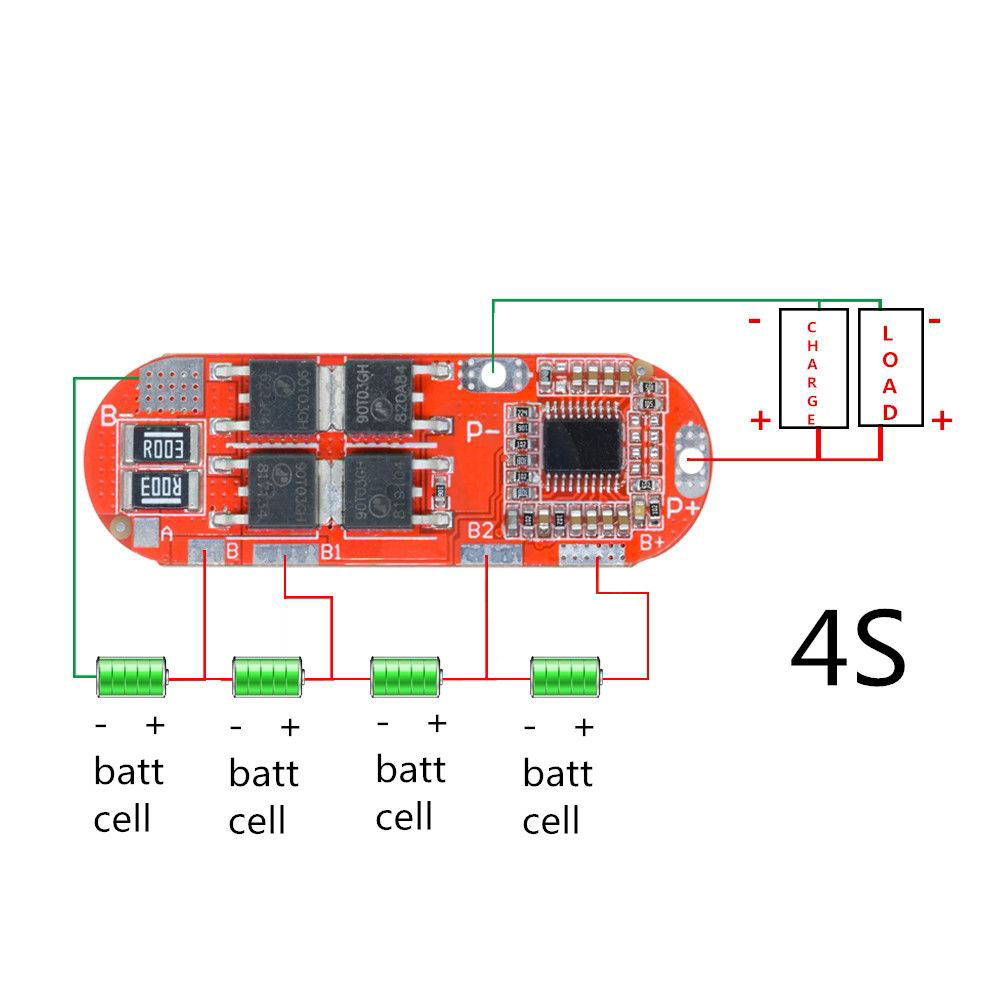

You can change the Series by adjusting the oΩ resistor(or shortcut by tin) as bellow:


Package Included:

1 x 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board
