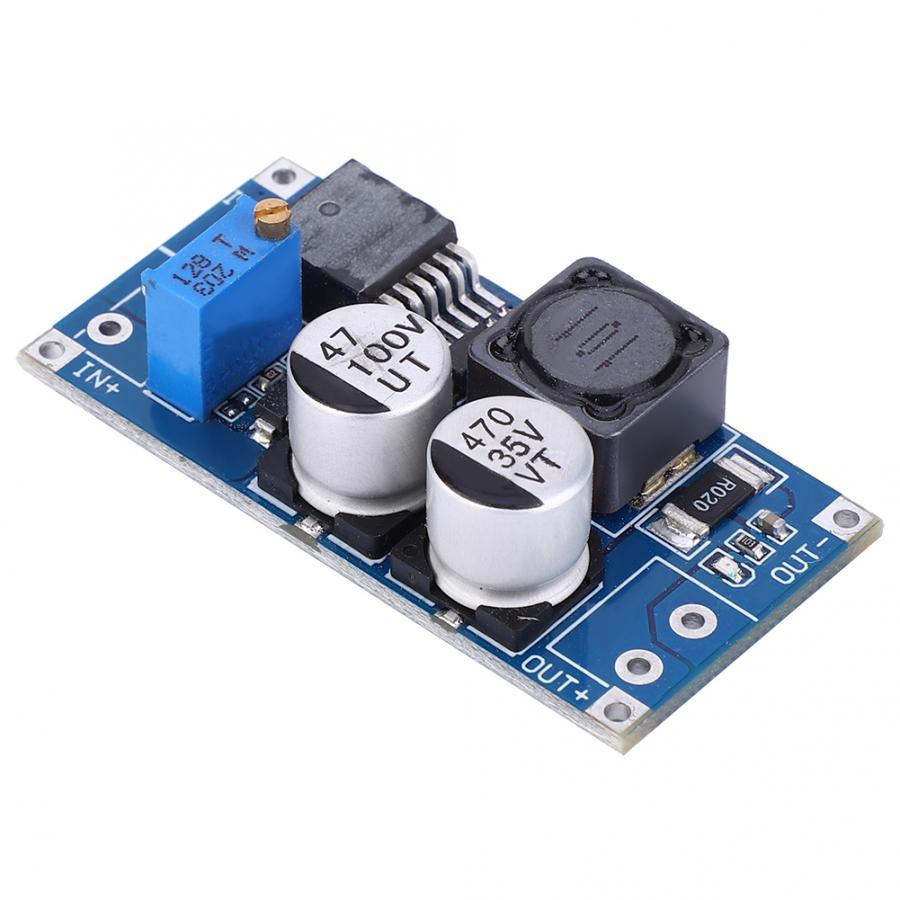

DC-DC Converter DC8-78V to 5V/12V Adjustable Step-down Power Supply Module QS-7812CBD-2A

https://www.satisled.com/web/image/product.template/7009/image_1920?unique=d8c7308
(0 review)

3.46 3.46 USD 3.46

¥ 25.00

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model: QS-7812CBD-2A

    Parameters:

    • Item Type: Step Down Module

    • Input Voltage: 8-78V Wide Input Voltage Range

    • Maximum Duty Cycle: 85%

    • Conversion Efficiency: 93% maximal (efficiency depends on input and output voltage and load size)

    • Minimum Differential Pressure: 2V

    • Output Voltage Range: 1.5V-20V Adjustable (input voltage must be higher than the output voltage, can not be boosted)

    • Output Maximum Current: 2.1A, Maximal

    • Output Maximum Power: 20W Maximal working within 12W for a long time.

    • Switching Frequency: 100KHz

    • Size: Approx. 25 x 55 x 17mm / 1 x 2.2 x 0.7in

    Feature:

    • 1. High-voltage step-down non-isolated DC-DC converter module with conversion efficiency up to 93%

    • 2. The maximum output power is 20W maximal, and it can work within 12W for a long time.

    • 3. Adopted of high quality electronic components, and accuracy process, ensure for the durability

    • 4. Small body, easy to install and remove

    • 5. The output voltage range is 1.5V-20V, it is adjustable
