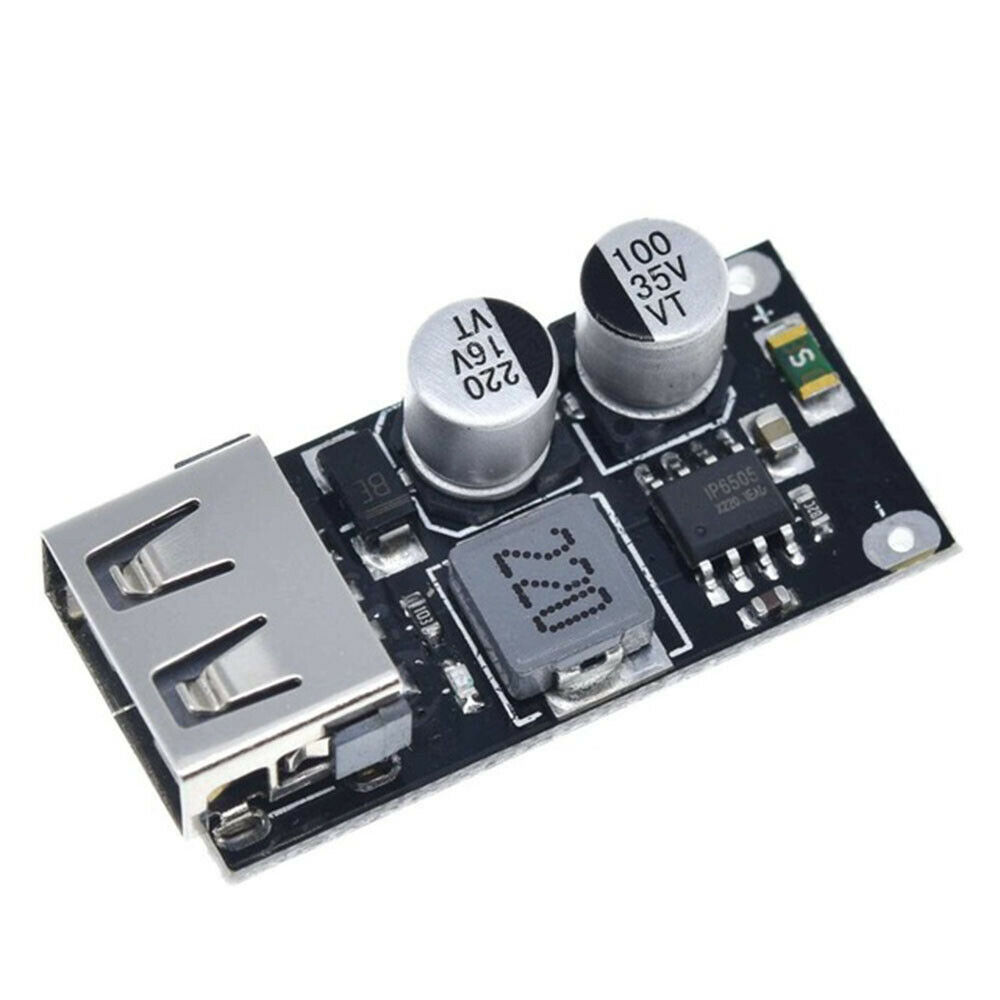

12V 24V to QC3.0 USB Charging Board DC Buck Module

Price:

$ 6.72
USD
  2. Shop
  3. 12V 24V to QC3.0 USB Charging Board DC Buck Module
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.08
$ 1.08
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
$ 1.32
$ 1.32

12V 24V to QC3.0 USB Charging Board DC Buck Module

https://www.satistronics.com/web/image/product.template/6850/image_1920?unique=99581fd
(0 review)

$ 1.68 1.68 USD $ 1.68

¥ 12.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Charging Power Module
    SKU :
    1941924
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Parameters:

    • Size:19*38mm

    • Input voltage range: 6v-32v

    • Output Voltage: Standard 5V, Automatically adjust between 3-12V after fast charge tripping

    • Output power: up to 24 w (5 v / 3.4A, 9 v / 2.5A, 12 v / 2A, etc.)

    • Output cable voltage compensation function

    • Conversion efficiency: 90% -97%

    • Support for multiple fast loading protocols

    • Input Overvoltage and undervoltage protection

    • Input Overcurrent protection

    • Overcurrent output, short circuit protection

    • The machine over temperature protection
