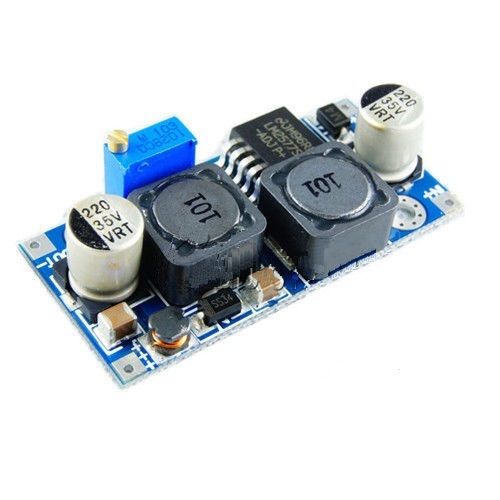

DC-DC Auto Boost Buck step Up step down Converter Module Solar Voltage LM2577

Price:

$ 1.18
  2. Shop
  3. DC-DC Auto Boost Buck step Up step down Converter Module Solar Voltage LM2577
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.44
$ 2.44
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
$ 2.76
$ 2.76

DC-DC Auto Boost Buck step Up step down Converter Module Solar Voltage LM2577

https://www.qskj.cc/web/image/product.template/6252/image_1920?unique=d27fcb4
(0 review)

$ 2.51 2.5100000000000002 USD $ 2.51

¥ 17.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    DC-DC Power Modules
    SKU :
    1940924
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Description:

    • Auto step down step up(SEPIC)
    • Input: 3-35V
    • Output: 1.25V-30V
    • Biggest current 2A
    • Conversion efficiency 92%
    • Frequency 50KHz
    • Output ripple 40mV
    • Temperature: -40℃ to +85℃

     Advantage:

    • low ESR Sanyo filter capacitance, plus another LC filter unit
    • Low voltage ripple to 40 mV, suitable for all kinds of use. good for solar.

    Specifications:

    • Size :about48*23*14(mm)
    • Net weight:14g
    • Package weight:24g
    • Color:Blue(as the picture shows)

    Package Included:

    • 1PCS* DC-DC Auto Boost Buck step Up step down Converter Module Solar Voltage LM2577
    You may also like
    L7812 LM7812 Three Terminal Regulator Module 12V Voltage Power Regulator Module
    L7812 LM7812 Three Terminal Regulator Module 12V Voltage Power Regulator Module
    $ 1.18 $ 1.18
    DC-ATX-160W MINI DC-ATX Inline Power Supply Module Board 24Pin 12V 160W
    DC-ATX-160W MINI DC-ATX Inline Power Supply Module Board 24Pin 12V 160W
    $ 13.60 $ 13.60
    DC-DC 6V-32V TO 0.8-28V 150W 15A Buck-Boost Voltage Regulator QS-1212CBA-150W
    DC-DC 6V-32V TO 0.8-28V 150W 15A Buck-Boost Voltage Regulator QS-1212CBA-150W
    $ 36.95 $ 36.95
    LM2576HVS-ADJ LM2576HV DC-DC Step Down CC-CV Adjustable Power Supply Module
    LM2576HVS-ADJ LM2576HV DC-DC Step Down CC-CV Adjustable Power Supply Module
    $ 3.40 $ 3.40
    IB0505LS-1W DC-DC Isolated Power Module 1W/5V
    IB0505LS-1W DC-DC Isolated Power Module 1W/5V
    $ 2.69 $ 2.69
    HLK-PM01 AC-DC Isolated Power Module 220V-5V Intelligent Household Switch
    HLK-PM01 AC-DC Isolated Power Module 220V-5V Intelligent Household Switch
    $ 3.75 $ 3.75
    MEGA Sensor Shield V1.0 Sensor Expansion Board
    MEGA Sensor Shield V1.0 Sensor Expansion Board
    $ 1.77 $ 1.77
    AC/DC Switch Power Module 5V 2.5W 500MA
    AC/DC Switch Power Module 5V 2.5W 500MA
    $ 2.49 $ 2.49
    DC-DC Step up Converter Boost Power Supply Module 10-32V to 35-60V 120W
    DC-DC Step up Converter Boost Power Supply Module 10-32V to 35-60V 120W
    $ 3.84 $ 3.84

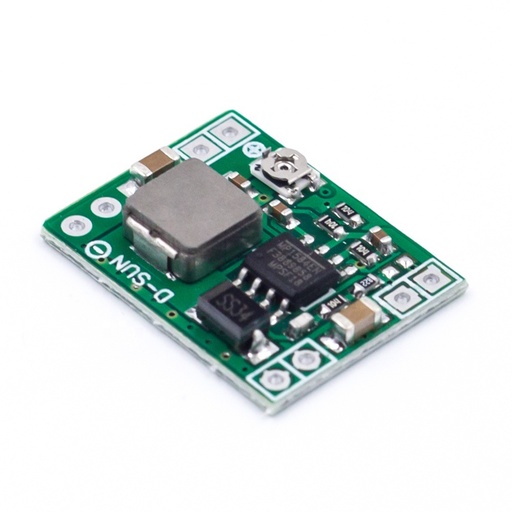

    Super mini 3A DC-DC Converter Step Down Power Supply Module 3V 5V 16V
