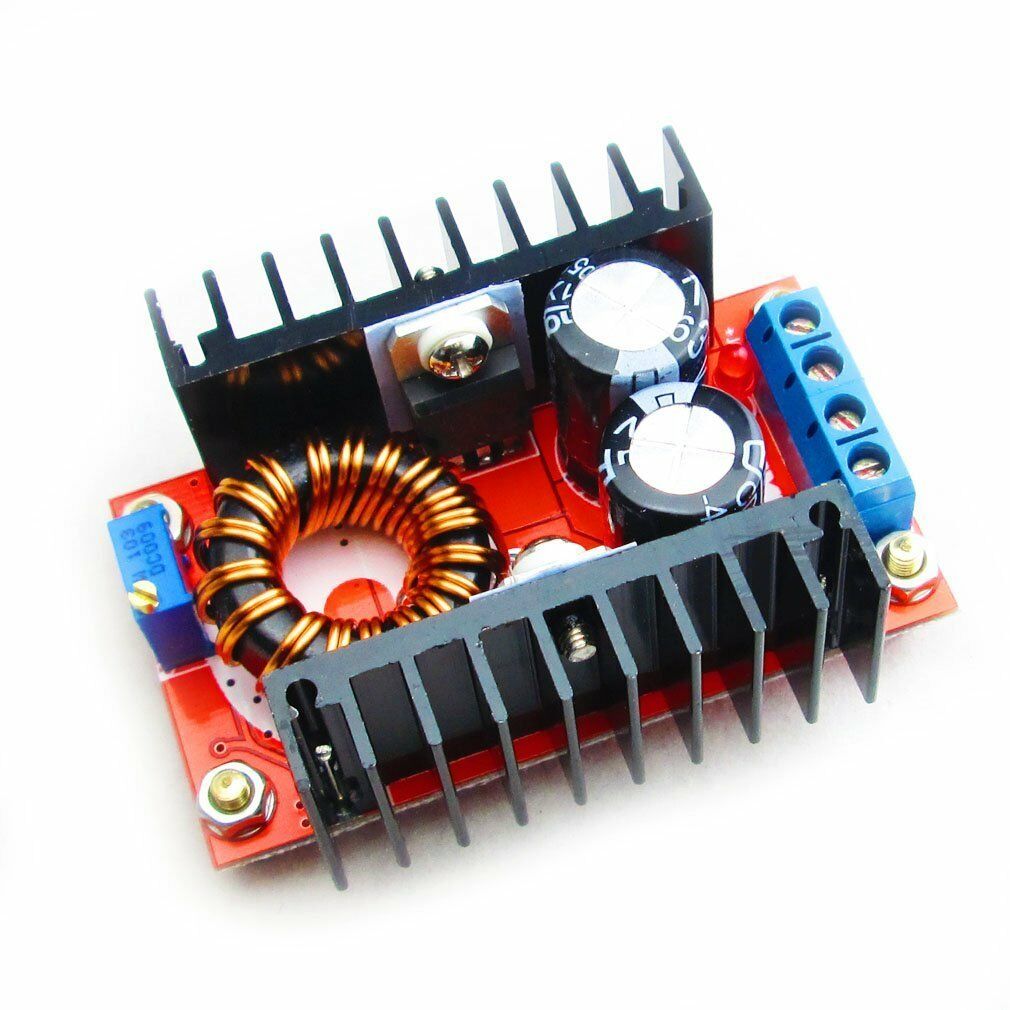

DC-DC Step up Converter Boost Power Supply Module 10-32V to 35-60V 120W

Description:

• With airfoil radiator, the cooling effect is improved significantly, greater output power(plus fan the max power can up to 130W).

• Low output ripple, when output in 48V,the output ripple can control in about 1%.

• Input voltage:10-34V, Output voltage default setting is about 48V.

Specifications:

• Module Properties: Non-isolated step-up module (BOOST) Input Voltage: DC 10-32 V

• Output Voltage: DC 35-60 V (adjustable)

• Maximum Input Current: 16 A (Higher than 10A need cooling)

• Maximum output Current: 5 A

• Power: 80W(MAX,Natural cooling),Strengthen cooling 120W(MAX,Actual power)

• Efficiency: typical 90 %(For reference)

• Output ripple: 2%(max) 20M bandwidth

• Operating Temperature: Industrial (-40 ℃ to +85 ℃)，( environmental temperature, more than 40 degrees, please reduce power to use, or enhance cooling)

• Full Load temperature rise: 45 ℃

• No-load Current: Typical 25mA

• Switching Frequency: 100KHz

• Load Regulation: ± 0.5%

• Voltage Regulation rate: ± 0.5%

• Dynamic response speed: 5% 200uS

• Short-circuit Protection : None (Please install fuses or protection circuits at input port if you need.)

• Input Reverse Protection: None (Please Series diode at the input port.)

• Net weight:67g

• Size: 65(L) x 47(W) x 27(H) mm

Application:

• Adjustable Output Car Power Boost Charger

• Power for your electronic equipment

• Solar battery charger for electric vehicles

Package included:

• 1 x DC-DC 120W Boost Module
