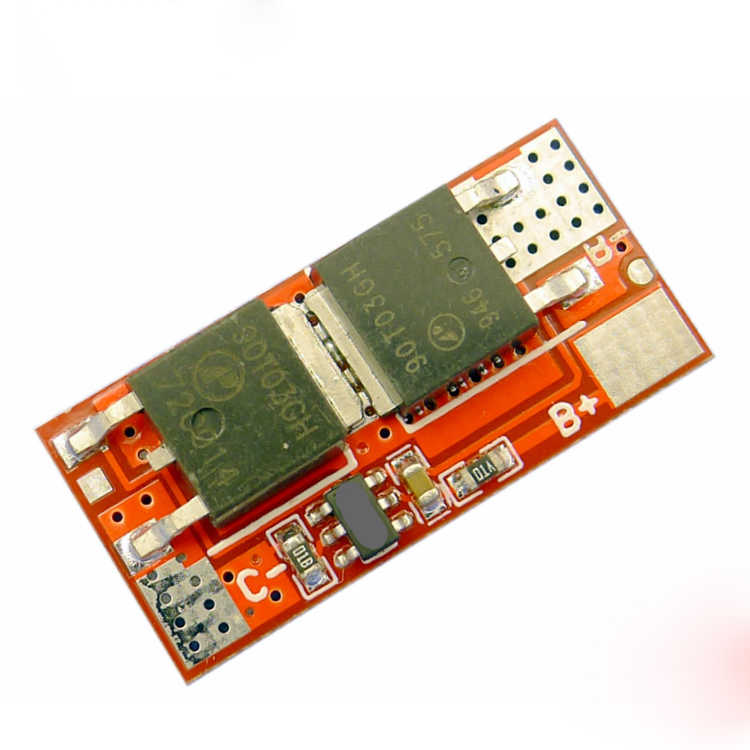

1/2 Series Large Current Ternary PCB Lithium Battery Protection Board QS-B401ANL-20A/QS-B402ANL-25A
Categories :
Battery Protection Board(BMS) , Electrical Tools BMS , 1-2 Series BMS , 3 Series BMS , 4 Series BMS , 5 Series BMS , 6 Series BMS , 7 Series BMS , 8 Series BMS , 10 Series BMS , 13 Series BMS , 14 Series BMS , 16 Series BMS , 17 Series BMS , 18 Series BMS , 20 Series BMS , 21 Series BMS , 24 Series BMS , 28 Series BMS , 32 Series BMSSKU :
1941786
100% original guarantee
Return within 30days
Worldwide Fast delivery
Brand: QSKJ
Model: 1 series: QS-B401ANL-20A / 2 series: QS-B402ANL-25A
Parameters:
- Single cell battery overcharge protect voltage : 4.25-4.35 V
- Single cell battery overcharge protect recover voltage : 4.05-4.15 V
- Overcharge protect delay : 1S
- Single cell battery over-discharge protect voltage : 2.3-2.5V
- Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
- Overcharge protect Current : 16A
- Over-discharge protect delay : 50-200mS
- Disconnect protect : Yes
- Short circuit protect : Yes
- Short circuit delay : 50-100 uS
- Charging current: 10A
