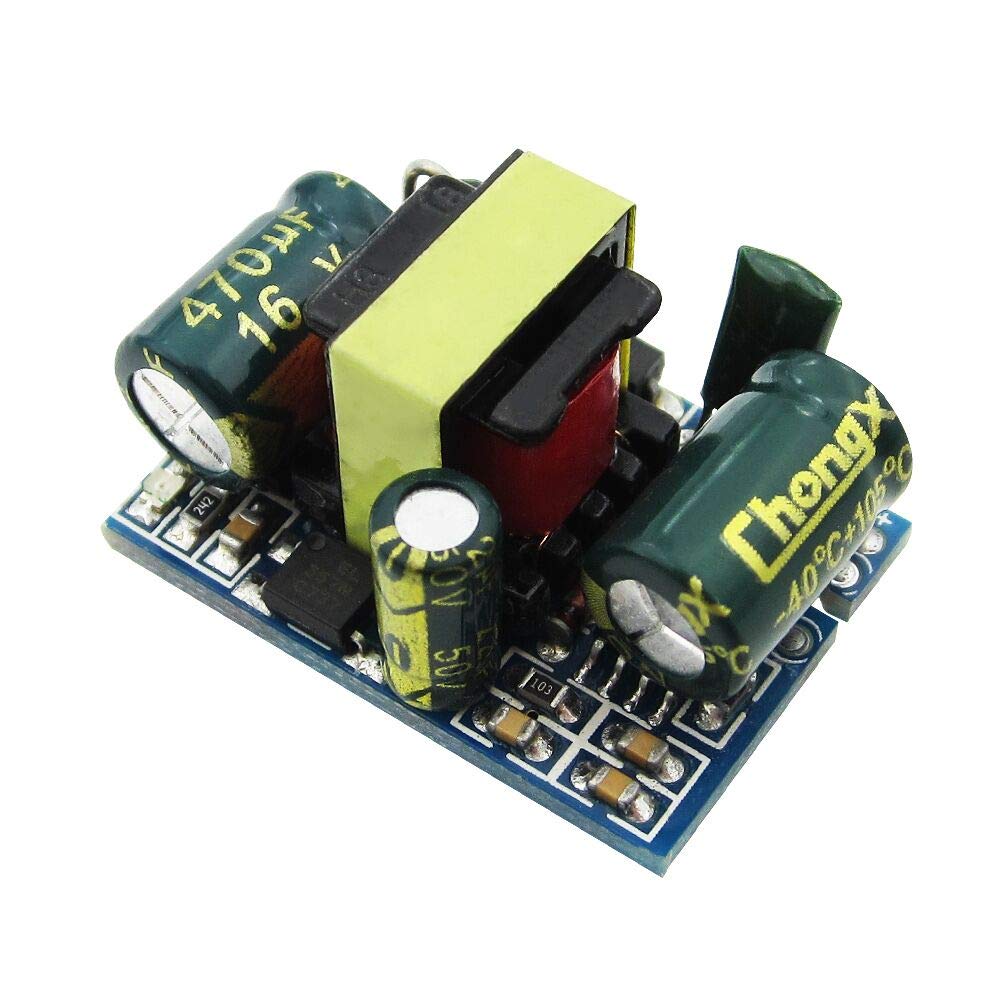

220V to 5V 700mA 3.5W Isolated Switch Power Supply Module AC-DC Buck Step-Down Module

https://www.satistronics.com/web/image/product.template/6784/image_1920?unique=04118b4
(0 review)

$ 0.82 0.8200000000000001 USD $ 0.82

¥ 6.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Buck-boost module (isolated)
    SKU :
    1941840
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Parameters:

    • Input voltage: AC85 ~ 265V 50/60Hz or DC100~ 370V

    • Input current: 0.0273A(AC110V) 0.014A(AC220V)

    • Input Inrush Current: 20A

    • Output voltage: DC 5V (+ / - 0.2 V)

    • Output current 700 mA

    • Power 3.5W

    • Operating temperature -20~60 degree

    • Relative humidity 40-90%RH

    • Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV

    • Output power:0-4W(DC current)

    • Output efficiency: 80%

    • Switch machine overshoot: MAX 10%

    • Output voltage rise time: MAX 100MS

    • Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery

    • Output over power protection:YES ,recovery:Lock, restart after recovery

    • Short-circuit protection: YES, automatic recovery after problem solved

    • Temperature protection: YES,recovery:Lock, restart after recovery

    • Over current protection: YES,recovery:Lock, restart after recovery
